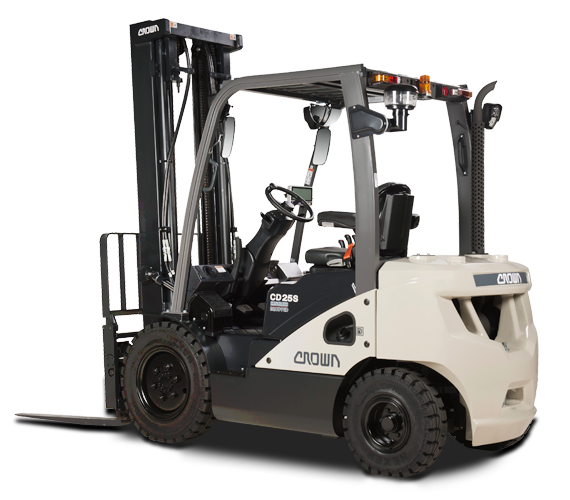

Crown’s C-D Series of diesel forklifts – available in a range of 2,000 to 3,500 kg capacity, delivers reliability, operator comfort and control, as well as serviceability to support long term performance and productivity.
Crown’s C-D Counterbalance series is designed with reliability in mind. For example, consider the enclosed oil cooled disc brake system which virtually eliminates outside contamination for extended brake life up to 5 times.
Reliability is further achieved through the power reversal transmission. It’s top-mounted control valve accurately modulates clutch oil pressure for smooth forward / reverse direction changes and long transmission life.
In addition, the lift truck’s full floating drive axle, hydrostatic steering and aluminum radiator all contribute to high performance, low maintenance and long lifespans.
The C-D Series benefits from a focus on operator comfort and control achieved through ergonomics and design.

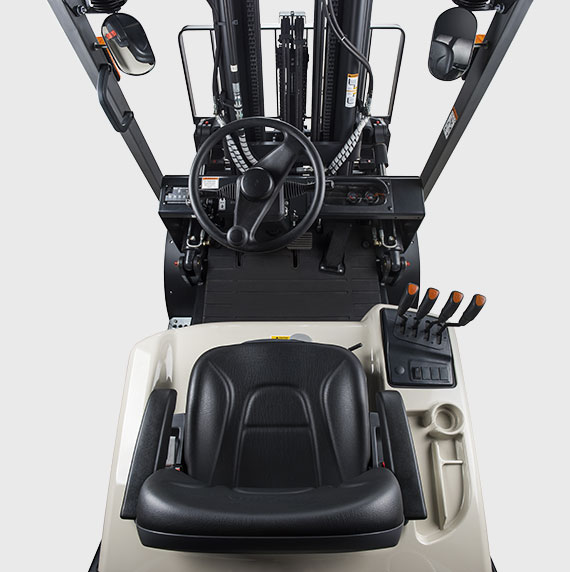

The spacious, well-planned operator compartment features ample legroom, a tilt able steering column, low-cowl height, and well positioned operator pedals.
The integrated, easy-to-read instrument panel includes a fuel gauge, engine hour meter, oil pressure, coolant / transmission temperature, mast interlock, transmission neutral, seat belt, brake oil level and other vehicle performance indicators.
When it is time to perform planned maintenance, easy access features improve uptime.

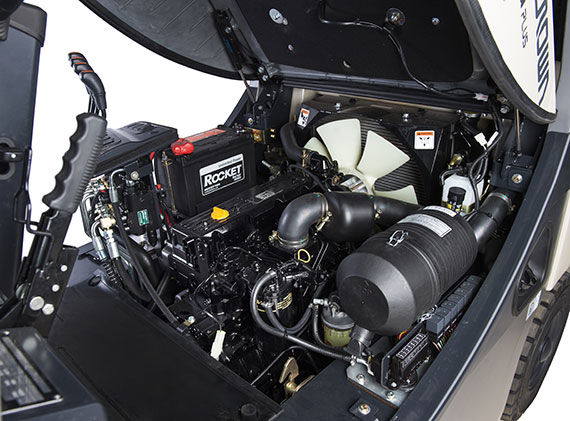

Ease of access begins with the tool-less side covers and floor plates. In addition, electrical components are integrated and placed at the front of the engine compartment.
Dual element air cleaners extend engine by allowing cool clean air to enter the engine intake system.
Crown’s C-D Series delivers long term value.
With Crown’s vertically integrated manufacturing and aftermarket services, total cost of ownership can be substantially low over time.
Designed for container work and transport depots, the NX model offers high value at a low price. The Weichai Diesel engine offers solid performance by optimising torque and RPM ratio that provides excellent ramp climbing ability and hydraulic power.
Load Capacity
2,000 - 3,500 kg
Mast (Lifting Height)
7,060 mm
Engine
Weichai 3.2L
Tyre Options
Pneumatic

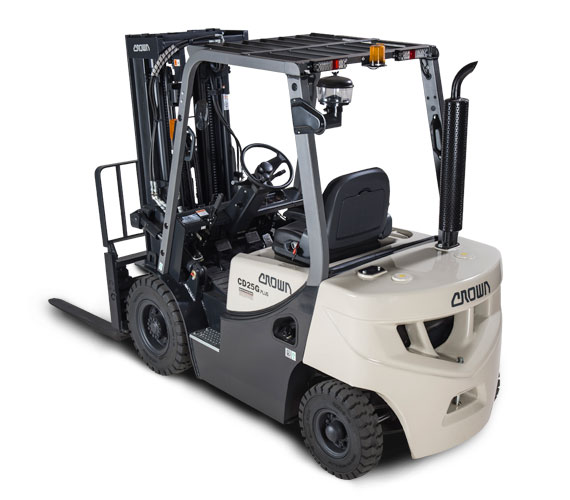

Like the NX, the NXP model was designed for container work and transport depots and offers a Euro Tier IIIA or EPA Interim Tier IV Yanmar Diesel engine. Excellent Ramp climbing ability and hydraulic power are provided by an optimised engine torque and RPM ratio. The electronic sift and seat deck (Hood) mounted levers provide operator comfort.
Load Capacity
2,000 - 3,500 kg
Mast (Lifting Height)
7,060 mm
Engine
Yanmar 3.3L
Tyre Options
Pneumatic

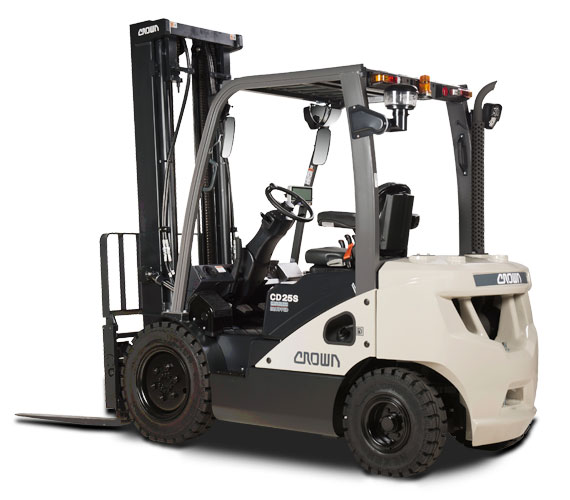

The S model offers Euro Tier IIIA or EPA Interim Tier IV Yanmar Diesel engine. Rugged applications that accumulate high hours will benefit from this truck's powershift transmission with programmable Autoshift controller. The Autoshift controler helps extend transmission life by softening on-the-go direction changes.
Load Capacity
2,000 - 3,000 kg
Mast (Lifting Height)
6,500 mm
Engine
Yanmar 3.3L
Tyre Options
Pneumatic

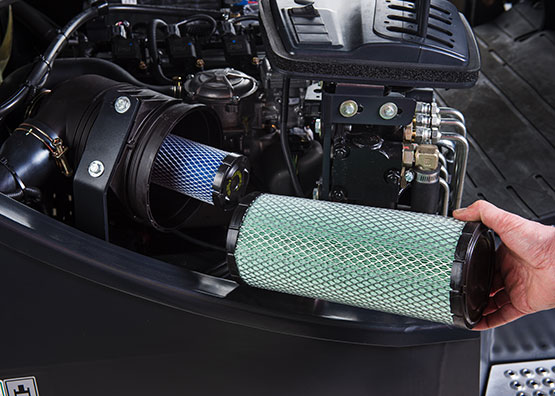

A heavy-duty dual element air cleaner provides advanced protection against engine contamination.

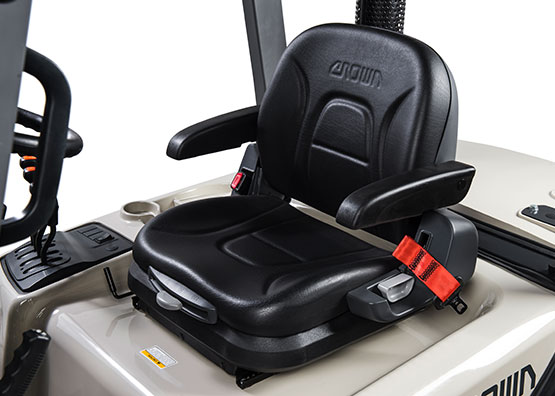

C-D Series’ full suspension seat is adjustable to provide comfort for a wide range of operators.

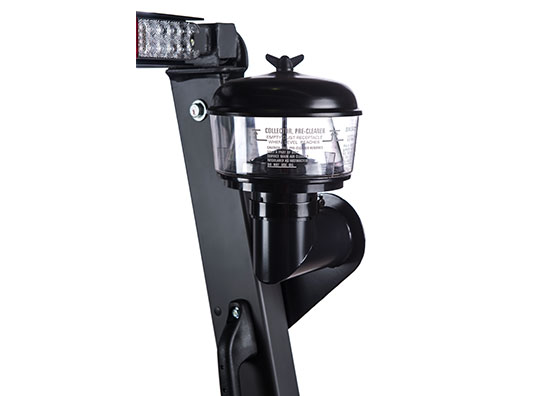

Optional air pre-filter provides an additional level of protection in harsh, dusty environments.
