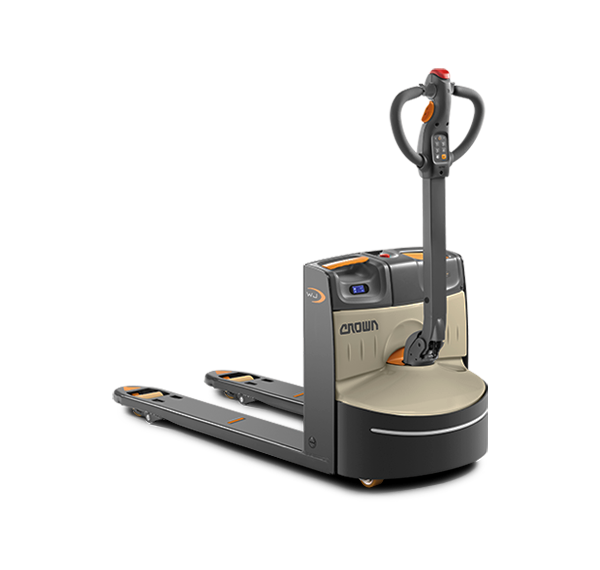

WJ Series Compact Pallet Truck

Big Performance In
A Small Package

Meet the WJ Series, the most compact powered pedestrian pallet truck available from Crown. It is designed to help today's diverse workforce handle heavy loads in tight spaces with less effort, with lasting performance backed by an exclusive 3-2-1 warranty.

Enquire About WJ Series

Applications
3-2-1 Warranty
Features
Model Types
Options & Accessories

Application Versatility

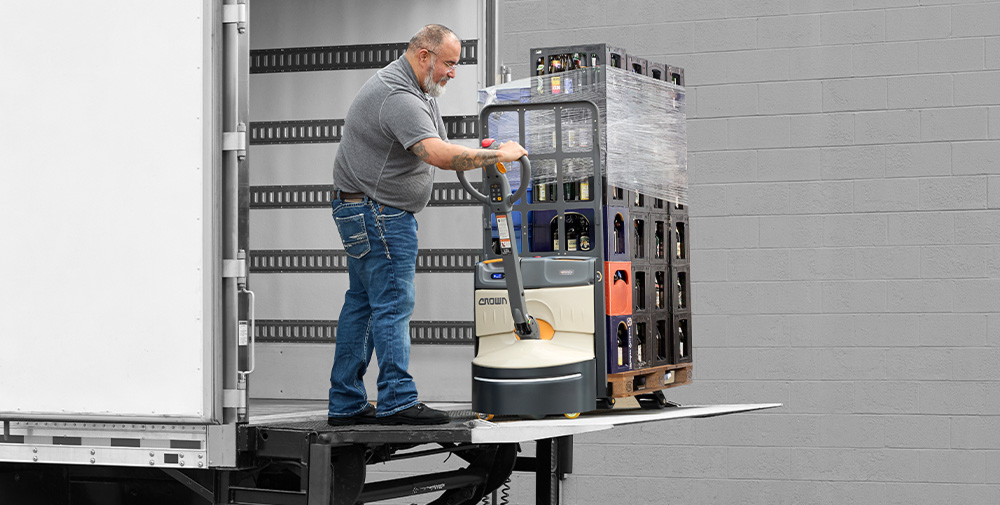

Transport and Logistics - Kerbside Delivery

With an incredibly short head length and an industry-leading turning radius, the WJ Series is ready
to handle loads with the tight confines of a lorry or a lift gate with precise pallet positioning.

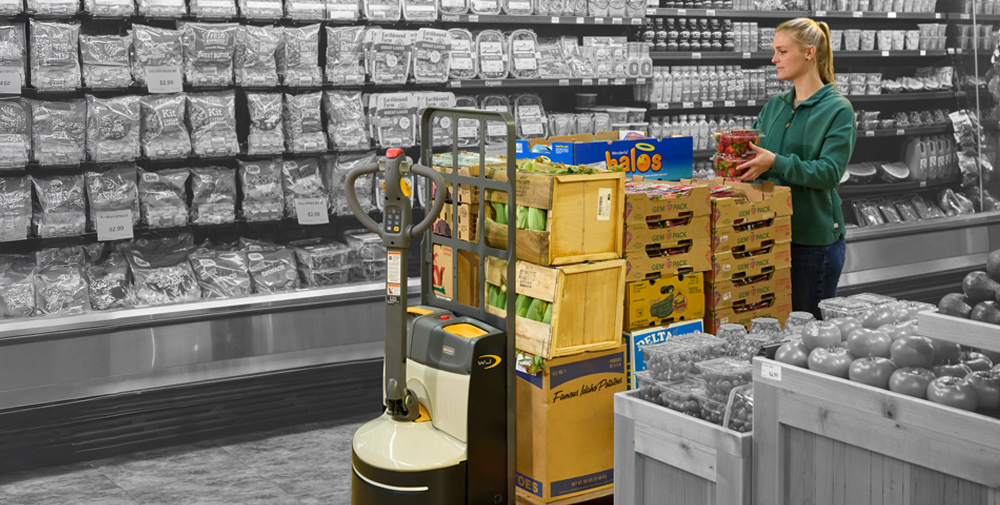

Retail Trade - Replenishment

A small footprint and travel speed up to 5 km/h help operators quickly and efficiently complete replenishment tasks.

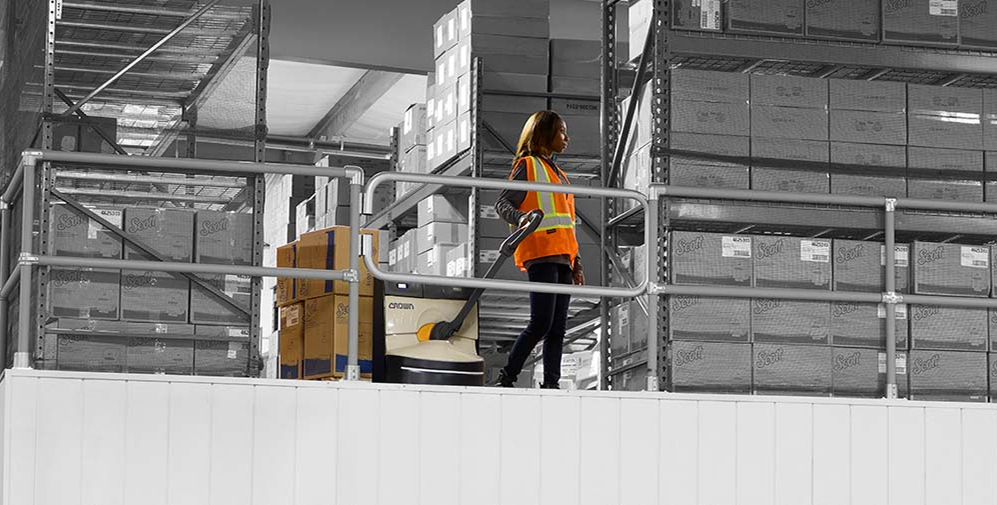

Wholesale Trade - Load Handling

Whether order picking, transporting or loading and unloading, the WJ 50 Series offers robust 48 V power
and electric lifting and lowering to help reduce fatigue, enhance safety and increase productivity.

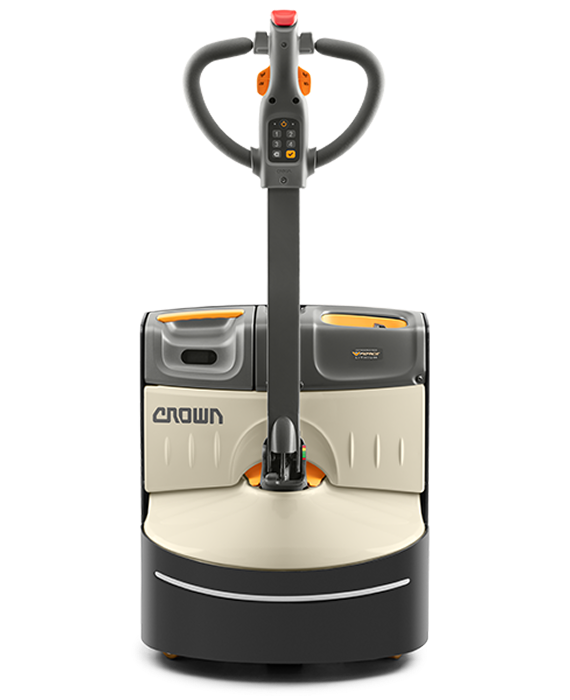

Industry Leading Warranty

The WJ 50 Series’ dependability is assured through a comprehensive, industry-leading warranty that covers chassis, forks, batteries and major components. That’s guaranteed performance.

Built For Lasting Durability

Robust steel construction provides a solid foundation and exceptional component protection, for
reliable performance shift after shift. The steel chassis and forks feature a 3-year warranty.

click to view features

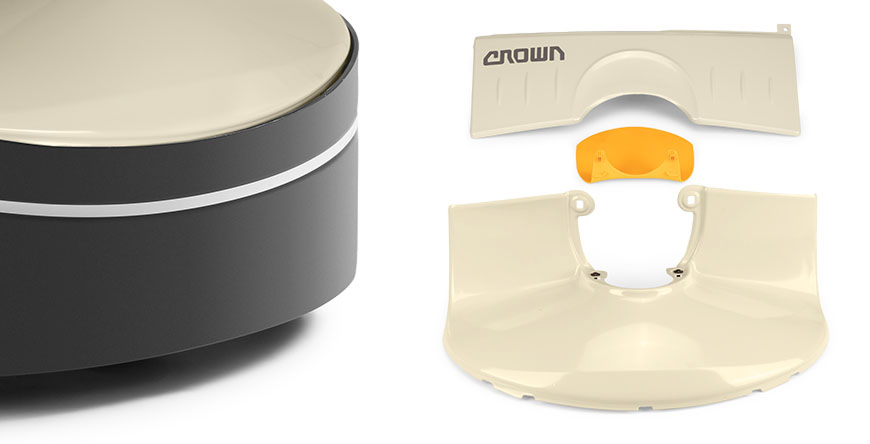

Multi-piece steel covers provide durability and added protection for internal components.

Covers can be easily disassembled for quick access during service opportunities.

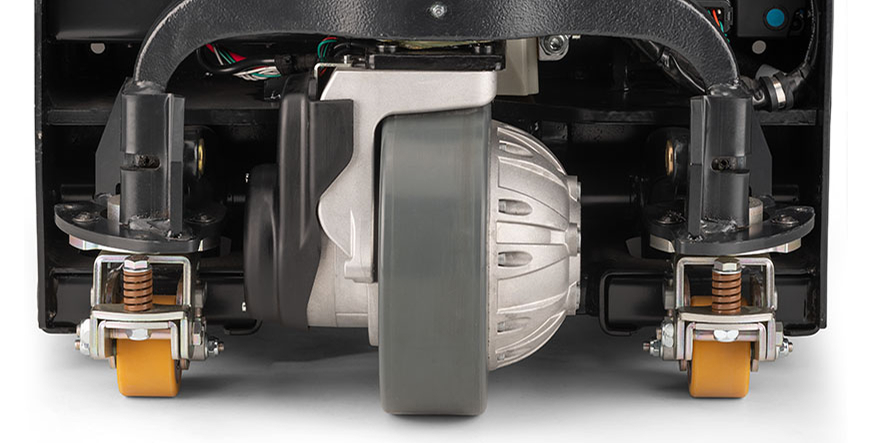

A potent 48 V electrical system and AC drive unit provide the power to move heavy loads.

Industry-leading energy efficiency means you'll use up to 39% less energy than the competition.

Operator-Focused Control

Experience simple, straightforward operation and ease-of-use embraced by today's diverse workforce,
whether right-handed or left-handed.

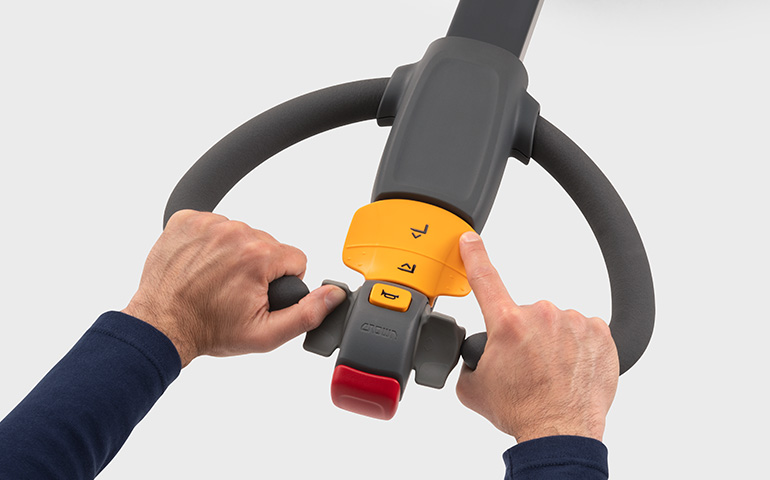

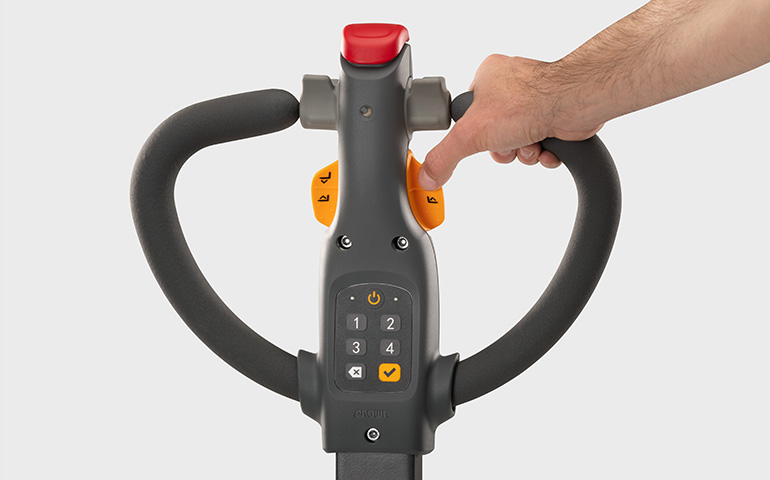

Large Lift and Lower Buttons

are accessible while standing at either side of the control handle, for easy right-handed or left-handed operation.

Blended Functions

combine travel with lifting and lowering to increase productivity and efficiency.

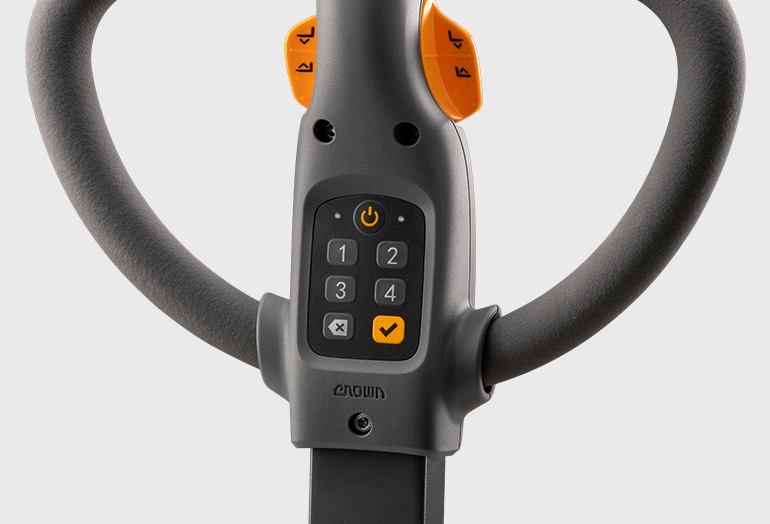

Access Control

can be managed through an optional embedded keypad, card reader or key switch integrated into the control handle.

Flexible and Efficient
V-Force Lithium-Ion Power

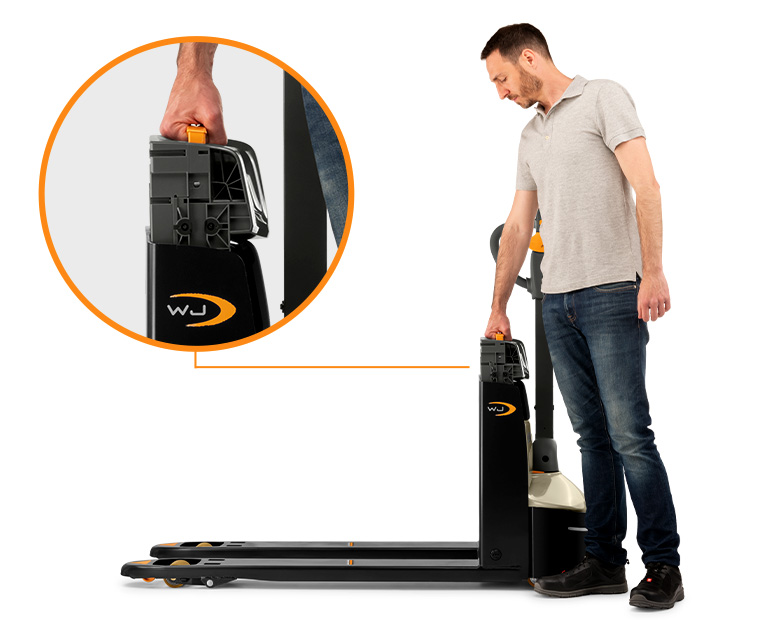

Easily plug and unplug the battery with one-handed operation.

Automatic locking ensures the battery remains fully seated and connected during operation.

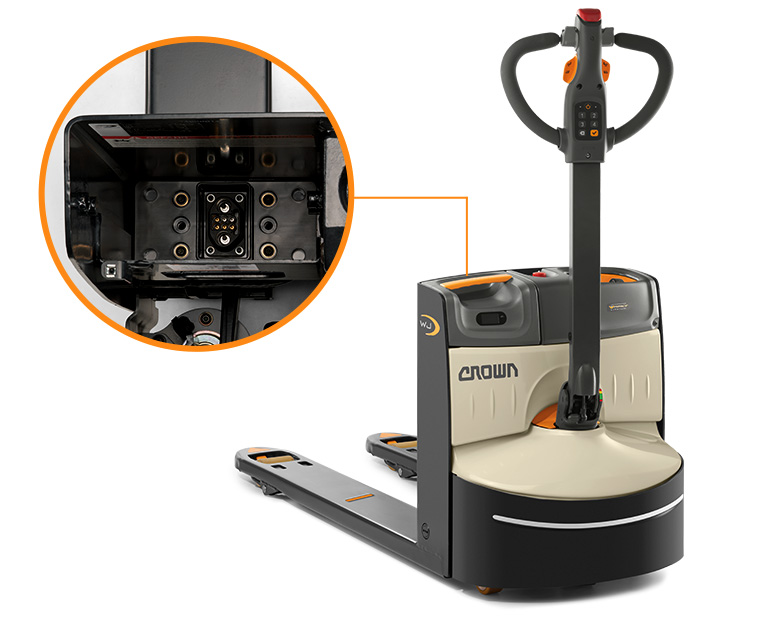

The battery compartment can accommodate different lithium-ion battery capacities.

Lithium-ion battery capacity ranges from 9,8 Ah t o 24,5 Ah, so you can utilize the battery that best fits your application and runtime requirements.

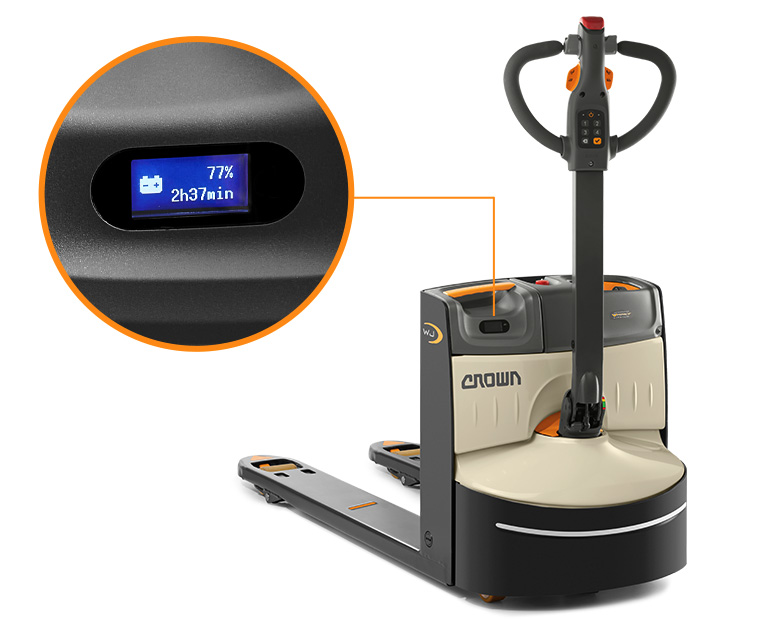

The battery display includes a residual runtime indicator to show the remaining runtime in hours and minutes.

The battery management system utilizes a learning algorithm to adapt to various duty cycles for increased reliability.

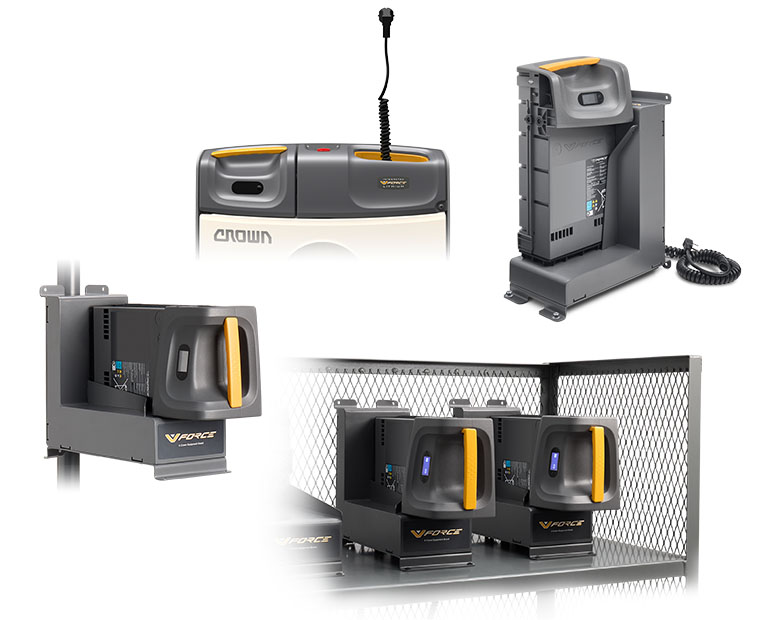

Multiple charges include two different onboard chargers that plug directly into a standard wall outlet for added convenience.

An optional external charge base can be mounted on the floor, on a shelf, on a post or on a wall.

Multiple charge bases can be grouped to create compact charging stations for multiple batteries.

Industry-Leading Compact Design

When space is tight, the compact design of the WJ 50 Series helps operators experience ease of travel without the physical stress of moving heavy loads.

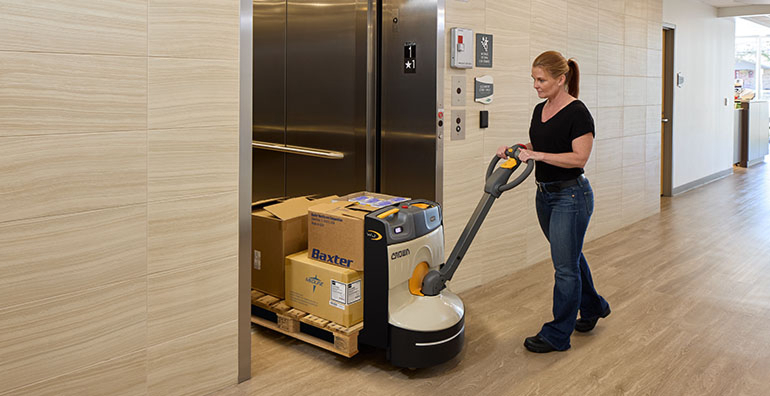

Short Head Length

With industry-leading head length of only 370 mm means the WJ 50 Series can fit where no powered pallet truck has gone before.

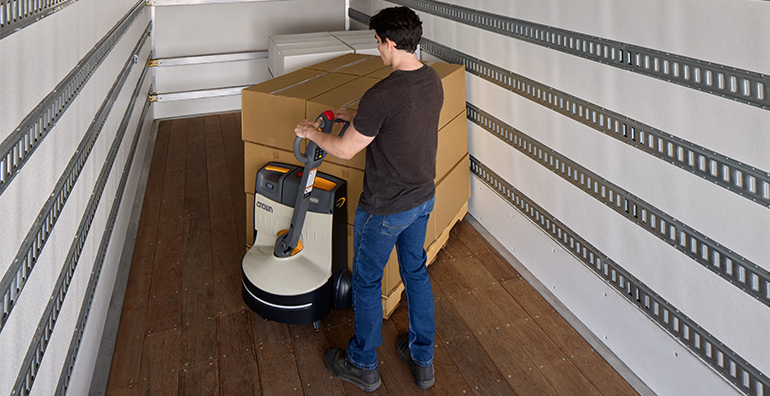

Tight Turning Radius

An industry-leading turning radius provides greater maneuverability in tight spaces.

Position Speed Control

This feature enables operators to use the control handle in a near vertical position while engaging traction at creep speed.

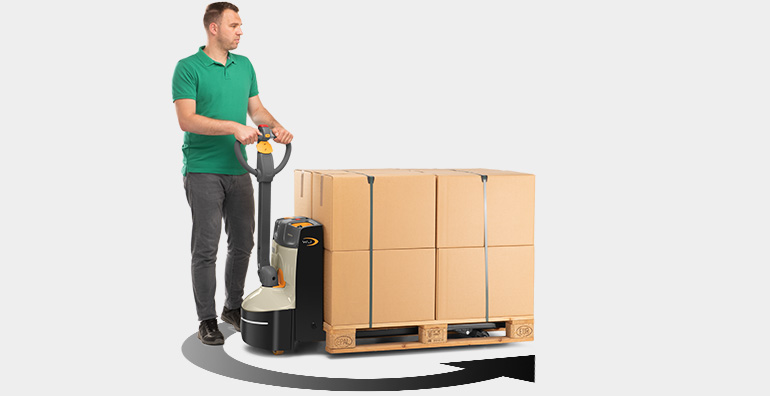

Vertical Tiller Drive

Reduces turning radius in tight spaces and enables fine-tuned pallet placement with the control handle in a completely upright position.

WJ Series Model Types

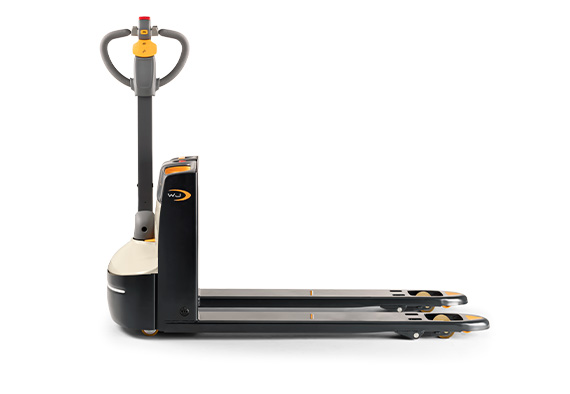

Compact Pallet Truck WJ 50 1.2 Series

A compact size and light weight make the WJ 50 1.2 Series an easy-to-use, dependable option for light-duty, indoor environments, such mezzanines, elevators, or retail floors.

Download Specifications Download Brochure

Load Capacity

1200 kg
Max Lift Height

115 mm
Power

48 V / 9.8 - 24.5 Ah
Weight (Incl. battery and on-board charger)

157.5 kg
Headlength

370 mm
Gradability with / without load

5 / 25%

Enquire About WJ 50 1.2 Series

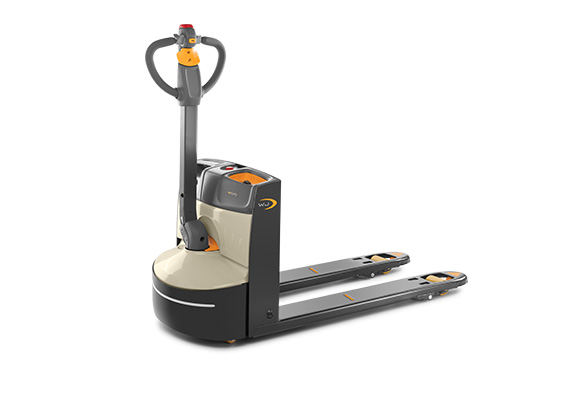

Compact Pallet Truck WJ 50 1.5 Series

With a load capacity up to 1500 kg, an upgraded drive unit and larger driving wheel, the WJ 50 1.5 Series easily masters uneven floors and inclines, making it ideal for deliveries and outdoor environments.

Download Specifications Download Brochure

Load Capacity

1500 kg
Max Lift Height

115 mm
Power

48 V / 14.7 - 24.5 Ah
Weight (Incl. battery and on-board charger)

161.5 kg
Headlength

370 mm
Gradability with / without load

8 / 25%

Enquire About WJ 50 1.5 Series

Adapt Your WJ 50 Series
to Fit the Application

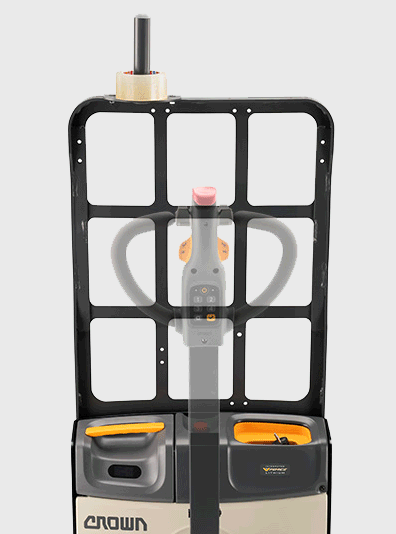

Work Assist Accessories

Designed to make the operator's job easier and more productive, the range of accessories available for the WJ 50 Series includes storage pockets, clipboards, scan gun holders, a load backrest and more.

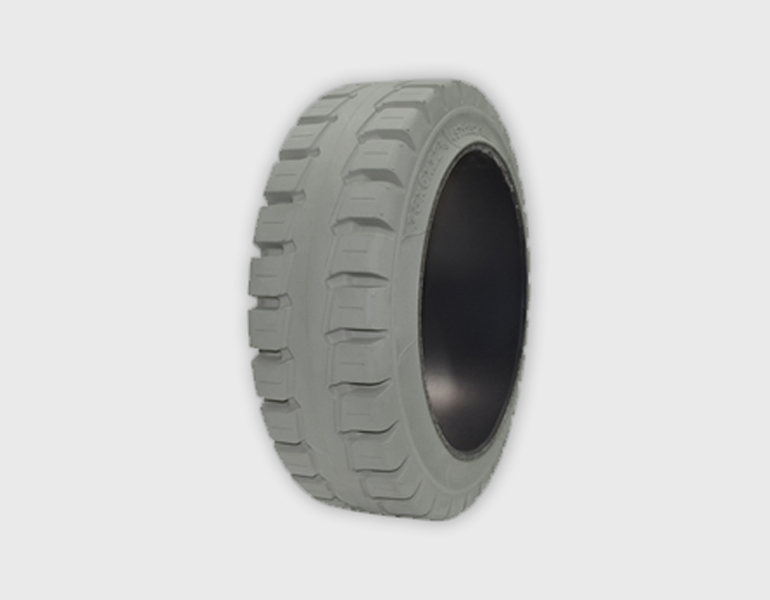

Rubber Drive Tyre

A rubber drive tyre is available for the WJ Series compact pallet truck, providing improved traction and stability especially in outdoor applications and on uneven surfaces.

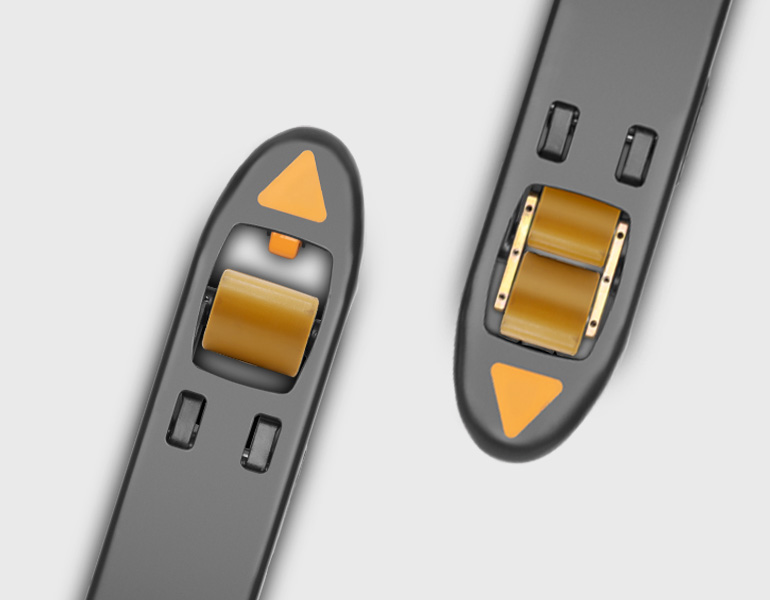

Single or Tandem Load Wheels

Single or tandem load wheels are available to suit pallet or load type and floor conditions.

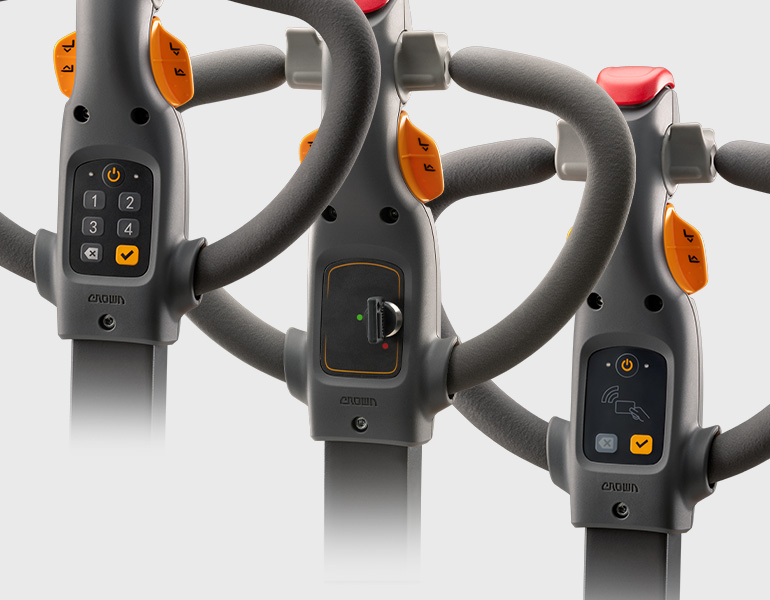

Access Control

Access control via keypad, optional key switch or card reader integrated into the control handle keeps unauthorized operators from using the pallet truck.

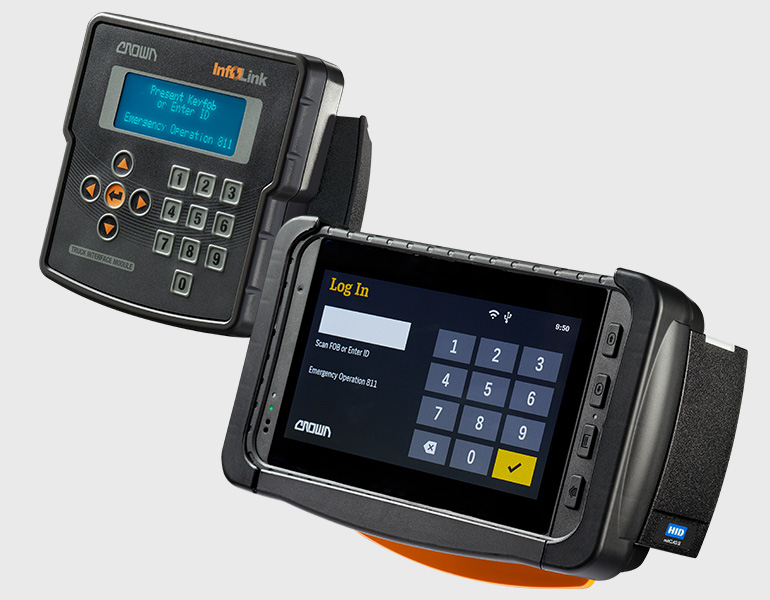

Infolink Operator and Fleet Management

The compact pallet truck WJ is available with Crown's InfoLink system to monitor performance and encourage safe operation.
