WAV Series Work Assist Vehicle
The Mobility Revolution
The Wave, Crown's Work Assist Vehicle, delivers significant savings through application versatility and enhanced productivity and safety.
Do Twice the Work
The Wave Work Assist Vehicle is a revolutionary, mobile productivity tool that allows one person to safely and efficiently accomplish the work of two, traveling twice as fast as the average walking speed.
- Reach working heights of up to 5 meters supported by a four-point safety system
- Travel up to 8 km/hour to reduce downtime between worksites
- Simultaneously elevate operator and load for smoother, more efficient workflows
- Maneuver through tight aisles and doorways as narrow as 813 mm
Safety at Every Turn
The Wave’s built-in system of protection and control starts the moment the operators turns the key switch. Crown’s Access 1 2 3 System coordinates a functional display, manages lift/lower operations and controls travel speeds, steering and braking.
The Wave's four point safety system provides enhanced operator control and safety.
Interlocking Gates
Interlocking gates must be closed to raise or lower above 508 mm.
Platform Sensors
Safety sensors below the platform disable raise, lower and travel if someone or something applies pressure to the motor cover located below the platform.
Hand Sensors
Hand sensors ensure the operator has both hands on the controls for normal travel and lift functions.
Dual Foot Pedals
Dual foot pedals include sensors to ensure the operator has both feet properly positioned on the platform. The Wave automatically stops travel and lift/lower functions if either foot is removed.
Productivity that Pays for Itself

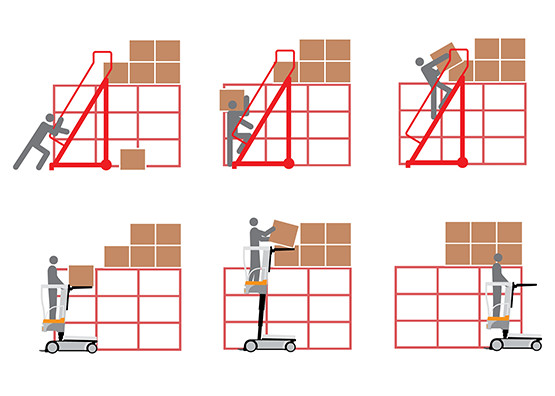

Experience a world without the risks of traditional ladders; employee falls and injuries, costly worker compensation claims, expenses of lost time and productivity, and expensive product damage.
Many Wave customers report a complete return on investment within one year of purchase.
Reduced operational expense
Reduced worker’s compensation cost
Reduced lost-time expense
Reduced product handling and damage costs
Flexibility to Handle Virtually any Application
Nearly every application that involves the movement of people or products can benefit from the Wave’s time- and labor-saving advantages. It is ideal for operations in busy, confined spaces where workers move with short and long travel runs, and where small loads are handled.
Order picking
Inventory restocking
Order fulfillment
Manufacturing and assembly
Load transport
Equipment inspection
Facility maintenance
WAV Series Model Types
WAV 60 Order Picker/Work Assist Vehicle
The WAV Series is designed to elevate one operator and a load to reach up to 5 meters and navigate tight aisles and doorways.
Download Specifications Download Brochure
-
Power (Electric)
24 Volts
-
Vehicle Capacity - Load Tray
90 kg
-
Vehicle Capacity - Load Deck
115 kg
-
Vehicle Weight (with battery)
645 kg
-
Platform Lift Height
2997 mm
-
Vehicle Length
1525 mm
-
Minimum Turning Radius
1205 mm
Key Options and Accessories
Power Load Tray
Power load tray has infinite positions and the operator can automatically adjust the tray for flexibility with any load.
Strobe Light
Strobe lights can be used to emphasize the presence of a lift truck in the area.
Retractable Charger Cord Reel
The retractable charger cord reel enhances the convenience of the Wave’s on-board battery charger.
Mast Storage Bins
Mast storage bins offer a unique storage solution without compromising load tray space.
Work Lights
Auxillary lighting improves visibility when ambient warehouse lighting is insufficient.
Crown Extended Warranty
Extended warranty options for major components and wearables offer long-term protection and peace of mind. Choose from coverage up to five years that best fits your usage and application.
