Pallet Trucks/

WJ Series Compact Pallet Truck

Big Performance In
A Small Package

Meet the WJ Series, the most compact powered pedestrian pallet truck available from Crown. It is designed to help today's diverse workforce handle heavy loads in tight spaces with less effort, with lasting performance backed by an exclusive 3-2-1 warranty.

Inquire About WJ Series
WJ Series electric pallet jack

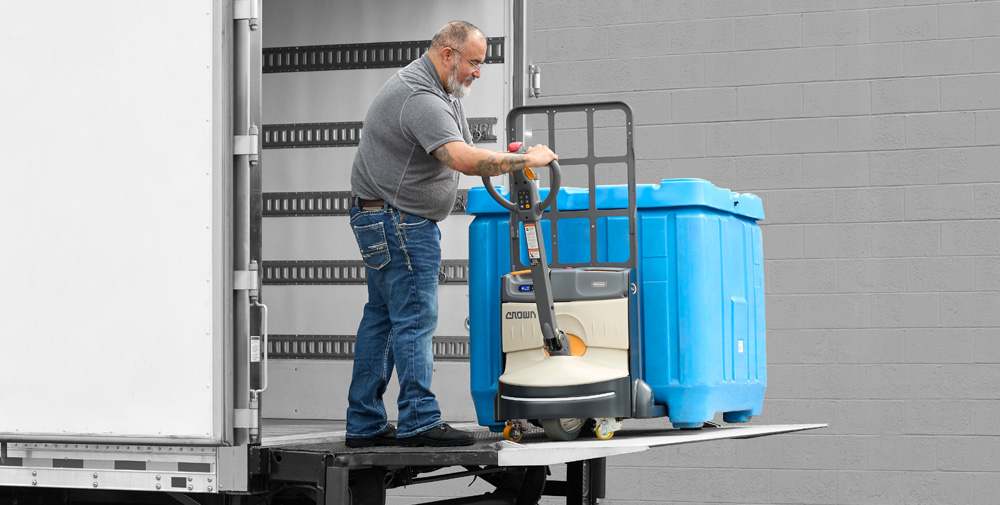

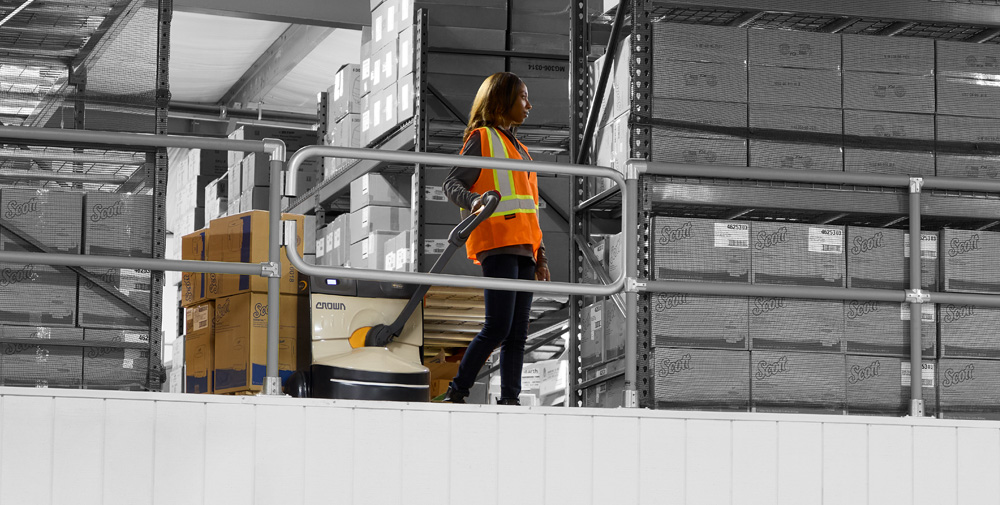

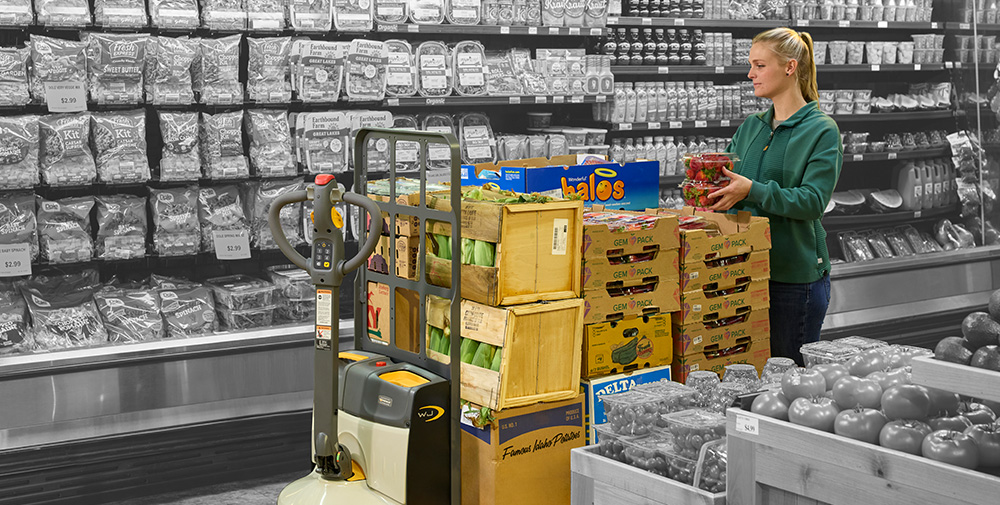

Application Versatility

Warranty Truck
spacer

Industry Leading Warranty

The WJ 50 Series’ dependability is assured through a comprehensive, industry-leading warranty that covers chassis, forks, batteries and major components. That’s guaranteed performance.

3-2-1-warranty

Built For Lasting Durability

Robust steel construction provides a solid foundation and exceptional component protection, for
reliable performance shift after shift. The steel chassis and forks feature a 3-year warranty.

click    to view features

WJ 50 All-metal Enclosure

Multi-piece steel covers provide durability and added protection for internal components.

Covers can be easily disassembled for quick access during service opportunities.

drive unit

A potent 48 V electrical system and AC drive unit provide the power to move heavy loads.

Industry-leading energy efficiency means you'll use up to 39% less energy than the competition.

Operator-Focused Control

Experience simple, straightforward operation and ease-of-use embraced by today's diverse workforce,
whether right-handed or left-handed.

are accessible while standing at either side of the control handle, for easy right-handed or left-handed operation.

lift and lower buttons

combine travel with lifting and lowering to increase productivity and efficiency.

blended functionality

can be managed through an optional embedded keypad or key switch integrated into the control handle.

access control
lift and lower buttons

Flexible and Efficient
V-Force Lithium-Ion Power

easy swap battery

Easily plug and unplug the battery with one-handed operation.

Automatic locking ensures the battery remains fully seated and connected during operation.

The battery compartment can accommodate different lithium-ion battery capacities.

Lithium-ion battery capacity ranges from 48 V / 9.8 or 19.6 Ah, so you can utilize the battery that best fits your application and runtime requirements.

power system

The battery display includes a residual runtime indicator to show the remaining runtime in hours and minutes.

The battery management system utilizes a learning algorithm to adapt to various duty cycles for increased reliability.

battery management
charging options

Multiple charges include two different onboard chargers that plug directly into a standard wall outlet for added convenience.

An optional external charge base can be mounted on the floor, on a shelf, on a post or on a wall.

Multiple charge bases can be grouped to create compact charging stations for multiple batteries.

Industry-Leading Compact Design

When space is tight, the compact design of the WJ 50 Series helps operators experience ease of travel without the physical stress of moving heavy loads.

With industry-leading head length of only 14.5 inches means the WJ 50 Series can fit where no powered pallet truck has gone before.

short head length

An industry-leading turning radius provides greater maneuverability in tight spaces.

tight turn radius

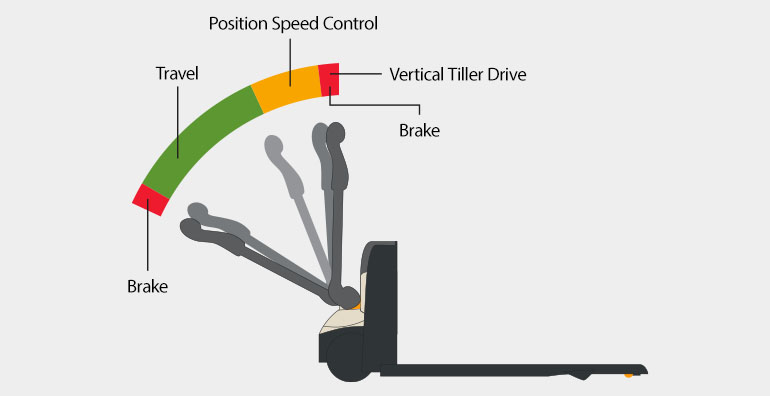

This feature enables operators to use the control handle in a near vertical position while engaging traction at creep speed.

position speed control

Reduces turning radius in tight spaces and enables fine-tuned pallet placement with the control handle in a completely upright position.

vertical tiller drive
short head length

WJ Series Model Types

Compact Pallet Truck WJ 50-26 Series
Compact Pallet Truck WJ 50-26 Series

A compact size and light weight make the WJ 50-26 Series an easy-to-use, dependable option for light-duty, indoor environments, such as mezzanines, elevators or retail floors.

Download Specifications   Download Brochure



  • Load Capacity

    2,600 lb

  • Max Lift Height

    4.5 in

  • Power

    48 V / 9.8 or 19.6 Ah

  • Head Length

    14.5 in

  • Gradability with / without Load

    5 / 25%

Inquire About WJ 50-26 Series
Compact Pallet Truck WJ 50-33 Series
Compact Pallet Truck WJ 50-33 Series

With a load capacity up to 3,300 lb, an upgraded drive unit and larger driving wheel, the WJ 50-33 Series easily masters uneven floors and inclines, making it ideal for deliveries and outdoor environments.

Download Specifications   Download Brochure



  • Load Capacity

    3,300 lb

  • Max Lift Height

    4.5 in

  • Power

    48 V / 9.8 or 19.6 Ah

  • Head Length

    14.5 in

  • Gradability with / without Load

    8 / 25%

Inquire About WJ 50-33 Series

Adapt Your WJ 50 Series
to Fit the Application

Designed to make the operator's job easier and more productive, the range of accessories available for the WJ 50 Series includes storage pockets, clipboards, scan gun holders, a load backrest and more.

Work Assist

A rubber drive tire is available for the WJ Series compact pallet truck, providing improved traction and stability especially in outdoor applications and on uneven surfaces.

Rubber Drive Tyre

Access control via keypad or optional key switch integrated into the control handle keeps unauthorized operators from using the pallet truck.

Access Control

The compact pallet truck WJ 50 Series is available with Crown's InfoLink system to monitor performance and encourage safe operation.

Infolink operator
Work Assist
