Sit-Down Reach Truck - ESR Series
Real Performance Is Within Reach
The ESR 1200 Reach Truck with Xpress Lower technology can double lowering speed to improve cycle time and increase productivity while regenerative lowering reduces energy consumption.
Built-in connectivity provided by the Gena operating system provides operators, managers and service technicians with a connected, data-rich environment that's more human, personalized and interactive.

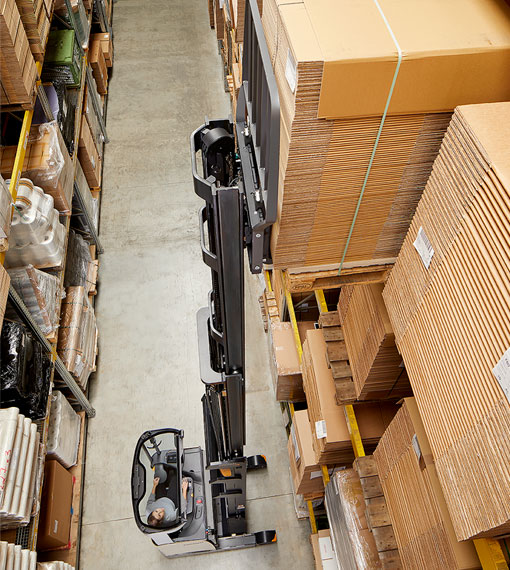

Work Smarter and Faster at Height
On an ESR reach truck, operators work with skill and precision at any height without compromising productivity. The ESR Series features various combinations of advanced hydraulics and motors, programmable features, intuitive displays, one-touch controls and camera options that all work together to raise performance.
- The ESR reach trucks’ optional Xpress Lower technology can double lowering speeds, resulting in substantial savings in time and money.
- The optional Auto Height Select feature automatically stops the forks at programmed rack heights - at the push of a button without looking away from the load - to improve throughput and avoid product, rack and lift truck damage.
- The Tilt Position Assist option compensates for mast and carriage deflection and automatically levels forks relative to the ground for more precise positioning.
Solid Mast, Higher Heights
To ensure that your reach truck is equipped with the right mast for your application, three mast designs are available for the ESR Series reaching heights up to 560 inches.
All three versions have been designed by Crown to resist flexing which reduces mast vibrations and swaying at height.
They offer impressive residual capacities of 2600 lbs up to 470 in. Other benefits include reduced loading and unloading times, higher throughput, improved operator confidence and added levels of safety.
Excel in Extreme Environments

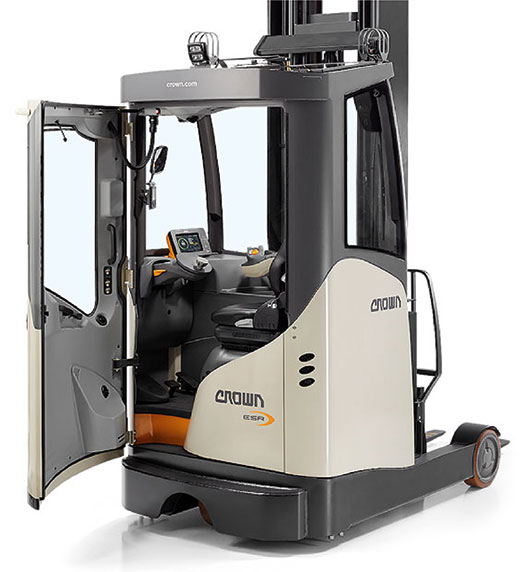

The spacious enclosed freezer cabin provides a heated, comfortable work environment in extreme temperature applications (-22°F). The cabin also affords exceptional visibility that contributes to operator productivity and comfort. Available on ESR 1240 and ESR 1260 models.
Using the reach truck in wet, dusty or freezer applications will greatly benefit from Crown’s patented OnTrac anti-slip traction control which reduces tire spin during acceleration, plugging and braking.
Built-in Intelligence
The ESR Series combines enhanced safety with productivity and usability.
Intelligent systems provide contextual guidance to help increase operator awareness and provide a safe and productive working
environment. At the same time, the smart technology provides a platform for growth, scalable to meet your future application needs.

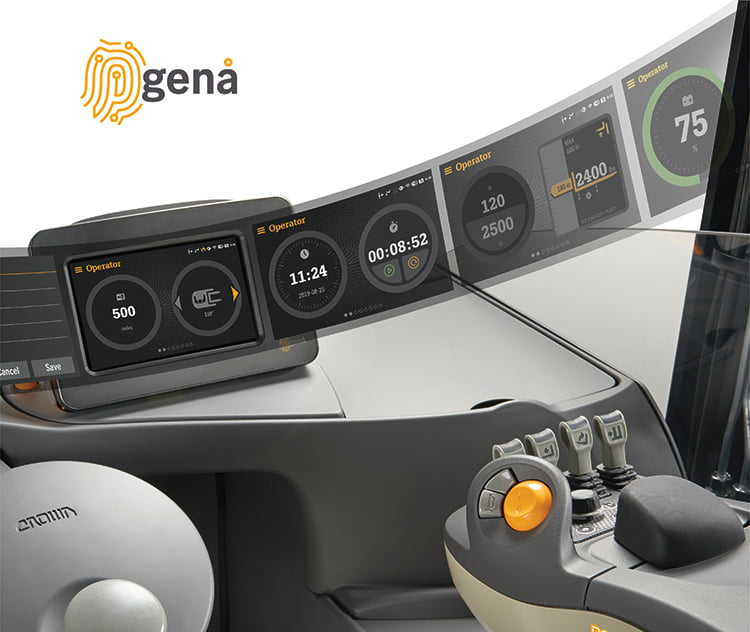

The Gena operating system provides operators with an intuitive, data-rich experience that’s fully integrated into the
reach truck’s architecture and can be updated wirelessly. Its 7” touch screen is programmable in 25 languages.
Customizable widgets help operators reach new levels of productivity.

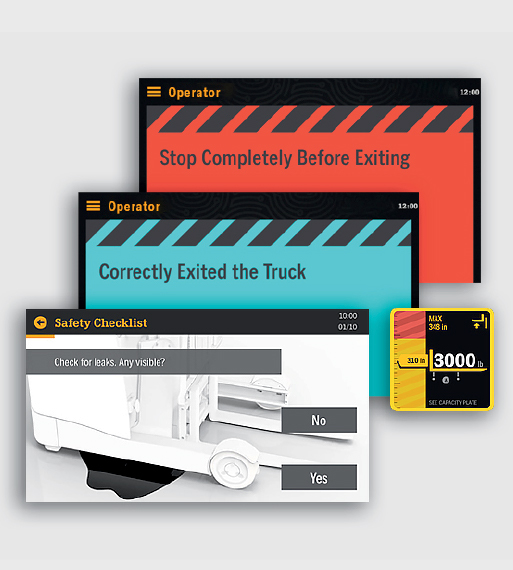

The optional Capacity Data Monitor provides load weights, lift heights and capacity limits at a glance.
Color-coded visuals are designed to alert the operator of current status, so they stay within specified load limits.
Crown’s optional InfoLink Operator and Fleet Management System helps promote safe operating behavior with
features including access control, visual inspection checklists, impact detection, alerts and equipment lockout.
Real-time and historical data reveal areas of risk and identify areas of opportunity.
The ESR Series reach trucks regularly display safety messages to remind operators of their training.
Clear interactive displays, automated assistance and coaching and context-sensitive alerts further enhance performance and productivity.
Make it Personal
Ergonomics and personalization play a vital role in improving productivity.
Operators of an ESR reach truck can choose the optimal position for control, visibility and workflow.
Adjustability all Around
ESR Series reach trucks include adjustability for suspension seat height/weight and forward/reverse seat position, as well as seat tilt and lumbar support.
The D4 Armrest can be mounted to the seat or the reach truck. Its height and horizontal position are also adjustable, as are steering tiller height and horizontal position and display screen inclination.
A great fit for both small and large operators.
Visibility
The ESR Series reach trucks' offset mast gives the operator a better view of the load wheel, fork and pallet.
The optional panoramic glass further enhances visibility and provides a superior debris shield.
Display and Accessory Controls
Integrated into the armrest, the ESR reach trucks’ optional display navigation knob provides a convenient alternative to the touchscreen.
Accessories such as worklights and seat heater are controlled from auxiliary switches in the armrest control panel.
D4 Armrest with a Choice of Hydraulic Controls
The operator-focused D4 Armrest, available as standard on the ESR 1260 and as an option for the ESR 1220 and ESR 1240, helps operators achieve more with adjustability, ergonomic comfort and adaptability.
A choice of fingertip, dual lever or multi-task controls allows you to customise your reach truck based on application needs and operator preference.
ESR 1200 Series Model Types
The ESR 1200 Series features the Gena operating system, which enhances the reach truck's performance and makes crucial information easy to see, understand and use. Operators can boost their throughput with advanced productivity features and built-in InfoLink connectivity hardware.
ESR 1220 Narrow Chassis Sit-Down Reach Truck
This narrow-chassis reach truck is ideal for confined spaces, drive-in racks, narrow rack aisles and block stacking applications.
Download Specifications Download Brochure
-
Load Capacity
3,000 - 3,500 lb
-
Max. Lift Height
362 in
-
Power (Electric)
48 V / up to 930 Ah
-
Head Length
45.9 - 56.3 in
-
Width Overall
44.1 in
ESR 1240 Standard Chassis Sit-Down Reach Truck
This standard-chassis reach truck is well-suited for lower-level lifting while providing excellent operator comfort.
Download Specifications Download Brochure
-
Load Capacity
3,000 - 3,500 lb
-
Max. Lift Height
474 in
-
Power (Electric)
48 V / up to 775 Ah
-
Head Length
46.7 in - 52.1 in
-
Width Overall
50.6 in
ESR 1260 Heavy-Duty Sit-Down Reach Truck
This heavy-duty reach truck is available with capacities up to 4,500 pounds. An optional cold store cabin is available for extreme temperature environments.
Download Specifications Download Brochure
-
Load Capacity
3,000 - 4,500 lb
-
Max. Lift Height
560 in
-
Power (Electric)
48 V / up to 1,085 Ah
-
Head Length
50.4 - 58.6 in
-
Width Overall
50.6 in
Reach Truck Options and Accessories
Lead-Acid Power
V-Force Lead-Acid Batteries offer the advantages of lower initial cost than other battery technologies and proven, trusted performance for light to heavy duty cycles, from one to three shifts. With proper maintenance, they can support conventional, opportunity and fast charging, delivering reliable energy when it’s needed.
Lithium-Ion Batteries
V-Force Lithium-Ion Batteries provide shorter charging time, unlimited opportunity charging and simplified battery management.
Color Camera System
The camera (mast or fork mounted) and color monitor improve the operator's visibility at height.
Choice of Overhead Guards
A choice of overhead guards allows you to personalize your reach truck to meet your application needs: angled, at, extended, drive-in rack, low clearance or clear glass.
USB Charging Port
ESR reach trucks with the Gena operating system can be equipped with a USB charging port, suitable for charging phones, tablets and other mobile devices.
Crown Extended Warranty
Extended warranty options for major components and wearables offer long-term protection and peace of mind. Choose from coverage up to five years that best fits your usage and application.
