SP Series Order Picker

Clearly Elevated Performance

From the wide-open operator window to its rock solid stability system, Crown’s SP Series order pickers are designed to help busy order pickers maintain confidence at height and efficiently handle a variety of tasks.

Crown SP series order picker

Visibility that Drives Success

Clear vision is the foundation of operator confidence. With the largest window of any stockpicker, the Crown SP Series makes operators clearly more productive.

The SP Series order picker forklift provides the most unobstructed view and eliminates “tunnel vision,” increasing operator confidence – especially at height.

Operator wearing a safety harness while operating the SP Series order picker forklift.
View of the SP Series stock picker in the air

Stability that Builds Confidence

Ample use of steel – from the mast to the side gates, and everything in between – means less sway and more operator certainty for greater all-around productivity.

That’s why Crown engineers developed the mast with heavy gauge steel, wide outer C-channels and inner I-beams, robust stabilizing angular cross members and exclusive vertical mast braces.

With Crown’s Stability Stance, operators have four points of solid contact with the lift truck when stopping and starting from 9 meters in the air.

Performance that Rises Above

Crown’s SP Series order picker supports a variety of operational needs while delivering speeds that ensure fast cycle times.

Regenerative lowering, available on some SP Series order picker models, captures lost energy and returns it to the battery, equating to fewer battery changes, longer shifts and reduced costs. Linear speed control, an option on many competitors’ trucks, is standard on all SP models and utilizes a variable height sensor to measure platform height and determine the optimum speed level.

A photo highlighting the SP Series order picker regenerative lower system
Operator using the SP Series stockpicker in a picking application.

Longevity that Pays

Crown's SP 3500/4000 Series lift truck is designed to optimize battery performance and shift life.  The SP 4000 - with 36 volt battery - enables common batteries and chargers to be used across your fleet.  In addition, with Crown electronics, diagnostics and service/parts infrastructure, owners can count on better overall results for years to come.

SP Series Model Types

3-wheel - Order Picker
SP 4000 3-Wheel - Order Picker


The SP Series is a stand-up rider stock picker used in narrow aisle stockrooms and warehouses. The truck is available with two different mast styles: limited free lift, triple telescopic.

Download Specifications    Download Brochure



  • Load Capacity

    1360 kg

  • Power

    24-36 V / 540 - 1240 Ah

  • Fork Lift Height

    3454 - 9296 mm

  • Platform Lift Height

    3518 - 9423 mm

4-Wheel Straddle Order Picker
SP 3570F 4-Wheel Straddle - Order Picker

The SP Series 4-wheel straddle stockpicker is suitable for narrow-aisle use. It is the highest capacity stockpicker in the line, handling heavy palletized loads at heights up to 9.296 m.

Download Specifications    Download Brochure



  • Load Capacity

    1360 kg

  • Power

    24 V / 1085 Ah

  • Fork Lift Height

    5334 - 9296 mm

  • Platform Lift Height

    5435 - 9423 mm

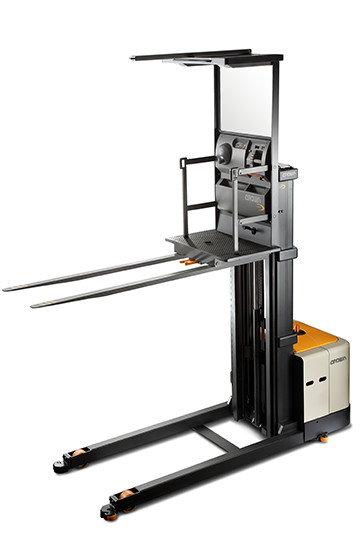

4-Wheel Platform and Cart Order Picker
SP 3580F 4-Wheel Platform and Cart - Order Picker

The SP Series 4-wheel platform stock picker is a heavy-duty stand-up lift truck used in areas where loads are bulky or extra long, such as furniture or department store warehouses.

Download Specifications    Download Brochure



  • Load Capacity

    680 kg

  • Power

    24 V / 1085 Ah

  • Fork Lift Height

    5334 - 9296 mm

  • Platform Lift Height

    5461 - 9423 mm

Key Options and Accessories

V-Force Lead-Acid Batteries offer the advantages of lower initial cost than other battery technologies and proven, trusted performance for light to heavy duty cycles, from one to three shifts. With proper maintenance, they can support conventional, opportunity and fast charging, delivering reliable energy when it’s needed.

Lead-Acid Power

V-Force Lithium-Ion Energy Storage Systems can improve performance and productivity, with technology that provides more consistent power output throughout the entire battery discharge cycle. Shorter recharge times and better charge acceptance characteristics make them great alternative power solutions for opportunity and fast charging applications.

lithium ion battery

Wire guidance automates steering control, allowing for minimal aisle widths.

Order picker wire guidance

Rail guidance automates steering control, allowing for minimal aisle widths. Rail guidance is not affected by facility power outages.

SP series order picker forklift rail guidance

The pallet clamp secures pallets with stringers to prevent unwanted movement.

SP series forklift pallet clamp

End aisle control provides a programmable method for automatically slowing the SP Series at a particular location and automatically resuming normal travel speed at another location.

SP Series order picker end aisle control

Auxiliary mast on the 3-Wheel SP Series adjusts load height allowing the operator to ergonomically pick to short pallets and bins. Load capacity is 998 kgs and is available with platform heights up to 9017 mm/fork heights up to 9601 mm.

Shown here with optional load facing controls.

Lifting Forks

Crown Work Assist accessories are designed to make the operator's job faster, easier and more productive.

SP series order pickers work assist accessories

Extended warranty options for major components and wearables offer long-term protection and peace of mind. Choose from coverage up to five years that best fits your usage and application.

Crown Extended Warranty
