Ride-On Double Stacker - RTD Series

Double up Throughput with this Double Stacker

The agile RTD Series combines the abilities of a heavy-duty stacker with the flexibility of a pallet truck, plus the capacity to transport two 1000 kg pallets. This makes the ride-on double stacker ideally suited for loading and unloading double-deck lorries, for putaway and retrieval as well as for internal transport.

Enquire about the RTD Ride-On Double Stacker
ride-on double stacker RTD Series

Application Versatility

The RTD Series double stacker offers exceptional versatility for a range of double pallet handling applications. Moreover, the RTD Series can help you save valuable dock work and floor space thanks to its narrow chassis, a short head length and the highly responsive electric steering.

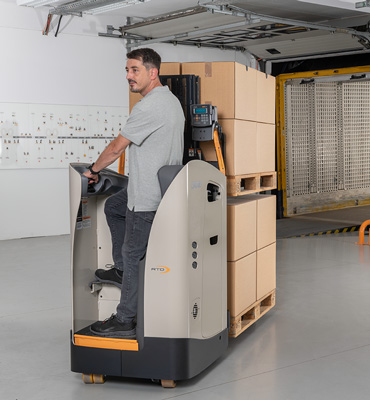

RTD double stacker transporting product
Transporter Excellence

The RTD Series excels in intermediate distance, high-throughput applications. It offers 12.5 km/h travel speeds and agile performance in congested areas, while the operator platform height enhances visibility.

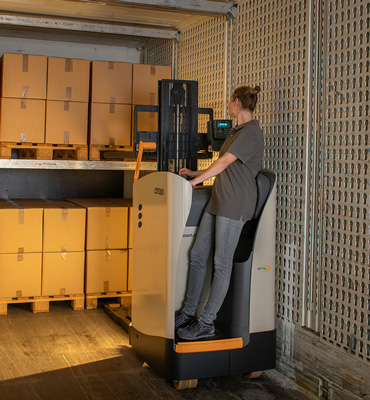

RTD double stacker in a double-deck lorry
Faster Dock Work

Thanks to the RTD Series’  intuitive controls, suspended floorboard and a chassis width of only 780 mm, operators quickly move product into and out of double-deck lorries or semi-trailers.

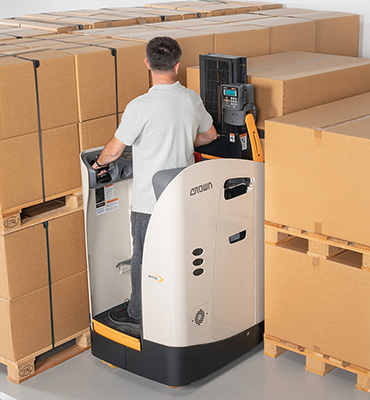

RTD double stacker in a block stacking application
Block Stacking Advantage

The compact design and the responsive steering of the RTD Series double stacker simplify work in tightly packed staging areas and narrow aisles, offering a considerable advantage for block stacking.

Operator Focused Performance

Crown’s RTD Series ride-on double stacker offers high-performance features tailored to individual operator and workplace needs combined with advanced ergonomic features for operator comfort and productivity.

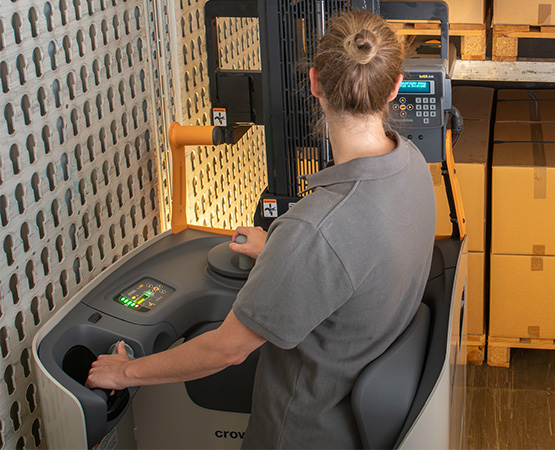

Electric Power Steering

Electric steering and intuitive controls give operators outstanding manoeuvrability and responsiveness – even with heavy loads – and are available in right-hand or left-hand configuration.

Combined with cornering speed control, electric power steering delivers top driving performance.

RTD ride-on double stacker features electric steering

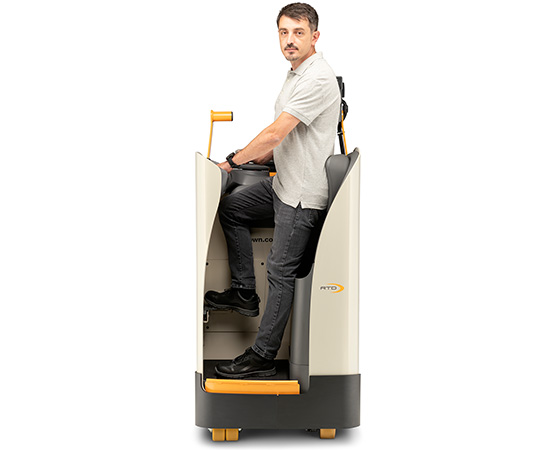

Each touchpoint of the double stacker has been critically evaluated to provide the operator with outstanding comfort.

A low step height, a wide, rounded access, a soft wrap-around lean pad as well as ergonomic controls help reduce fatigue. With additional optional features, operators benefit from even more comfort.

RTD ride-on double stacker features exceptional comfort

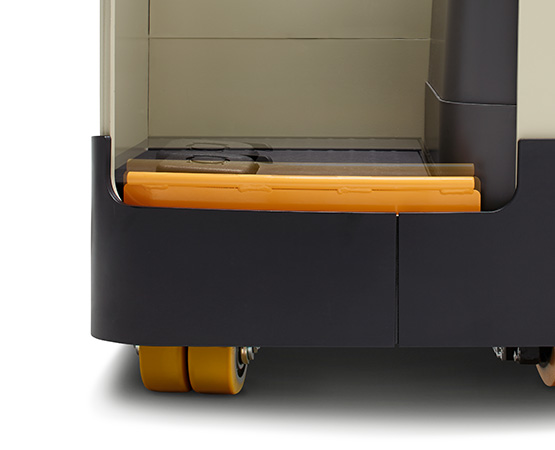

The suspended floorboard and spring-loaded castor wheels reduce shocks from dock boards and uneven floors, offering outstanding ride comfort.

Enhanced suspension is available as an option.

RTD ride-on double stacker features a suspended floorboard

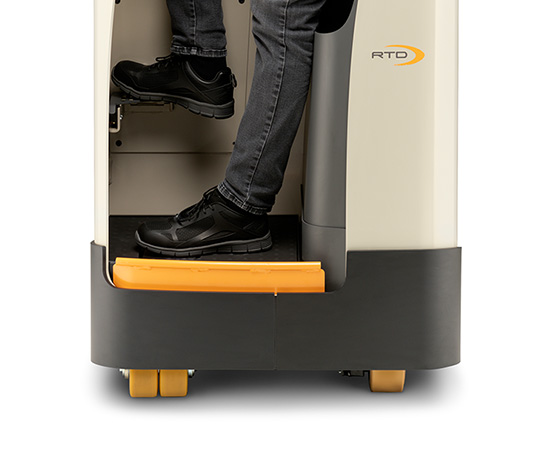

The Entry Bar switch helps to promote operator safety. If an operator places the foot on the entry bar switch, the double stacker automatically slows down.

RTD ride-on double stacker features the Entry Bar switch

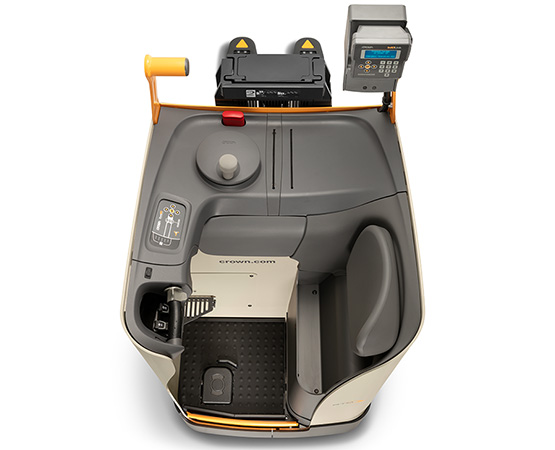

The short head length together with the elevated operator platform and the side-stance operation provide exceptional visibility in both driving directions.

RTD ride-on double stacker features exceptional visibility

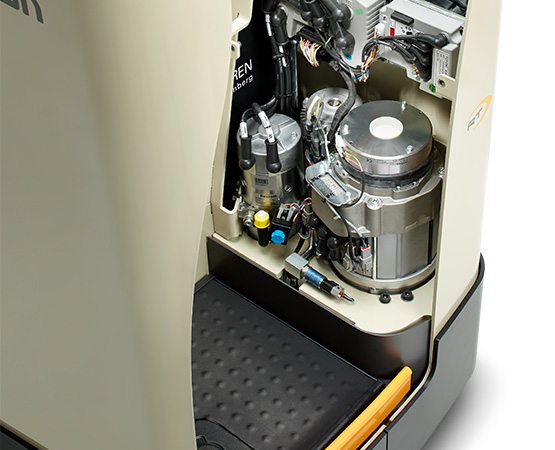

The virtually maintenance-free Crown traction motor offers 12.5 km/h travel speed, powerful acceleration and control.

Crown’s Access 1 2 3 Comprehensive System Control provides intelligent coordination of the double stacker’s systems as well as simplified service.

RTD ride-on double stacker features Crown motors
RTD ride-on double stacker features electric steering

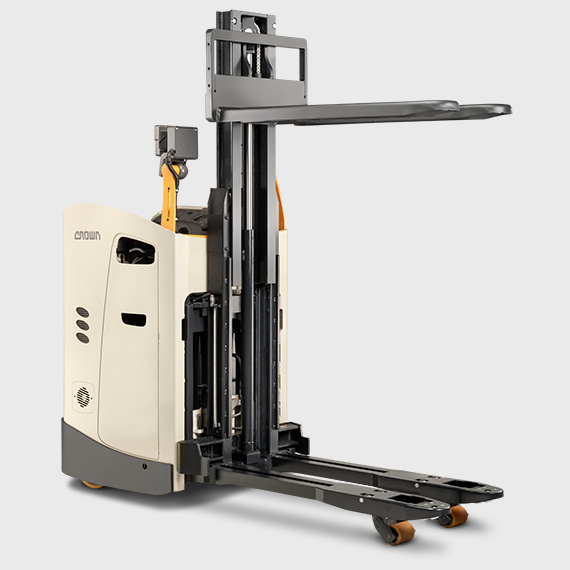

RTD ride-on double stackers are extremely robust

Reliable and Protected

The RTD Series ride-on double stacker is engineered to withstand the rigorous conditions around fast-paced, congested work areas.

  • Robust initial lift load arms provide higher ground clearance for better handling on inclines and uneven floors and to avoid product shifting during transport.

  • It features a reinforced 8-mm thick steel skirt, 6-mm thick steel wrap-around sidewalls and no exposed plastic parts in external areas.

  • Reinforced, one-piece high tensile steel forks feature an adjustable pull-rod linkage, eliminating buckling forces and providing more protection over uneven surfaces and dock boards.

  • Crown designed and built AC motors run longer, cooler and more efficiently and feature the highest thermal rating in the industry.

RTD Series Model Types

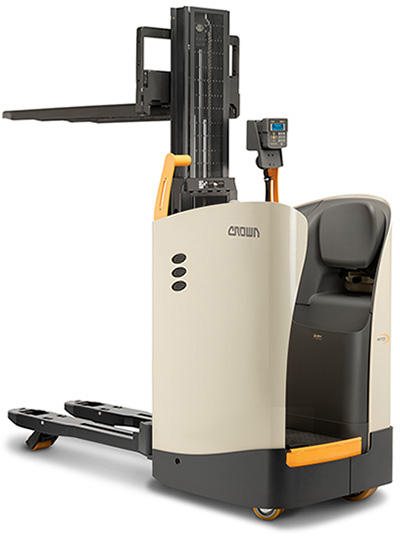

ride-on double stacker RTD 4020

Ride-on Double Stacker

The RTD Series ride-on double stacker offers a compact, agile and highly manoeuvrable design, enabling operators to easily double up loads in confined spaces.

Download Specifications


  • Load Capacity

    2000 kg

  • Max Lift Height

    1800 mm

  • Power

    24 V / 315 - 375 Ah (420 - 465 Ah)

  • Head Length

    1032 mm

  • Width Overall

    780 mm

  • Fork Length

    1190 mm

Enquire about the RTD Series

Options and Accessories

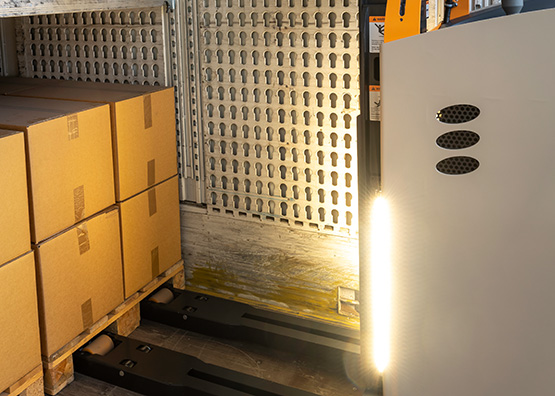

LED Work Lights

Modern LED work lights provide significantly increased visibility in challenging lighting conditions on the ramp or inside a lorry or trailer.

The work lights are positioned at a specific angle to avoid glare and reflection and they can only be activated when moving in forks-first direction. In combination with the fork tip indicators, they enable precise and swift control of the double stacker.

RTD ride-on double stacker is available with LED work lights

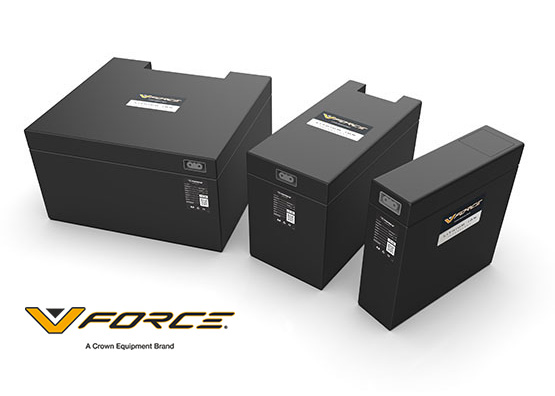

V-Force lithium-ion batteries can improve performance and productivity. They offer a very short charging time, tolerate unlimited opportunity charging, and simplify battery management by avoiding the need for daily maintenance, spare batteries or special rooms for charging.

RTD ride-on double stacker is available with li-ion batteries

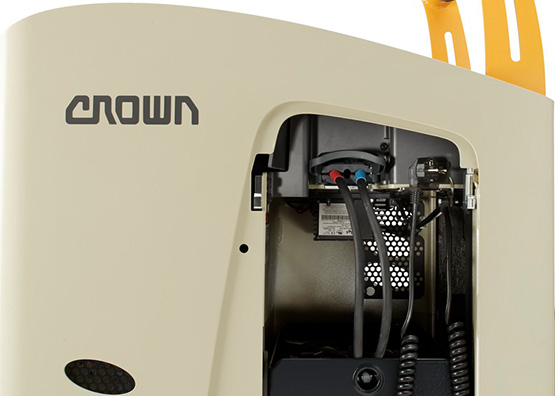

The fully automatic on-board charger provides a convenient charging solution and eliminates the need to remove the double stacker's battery.

RTD ride-on double stacker is available with on-board charger

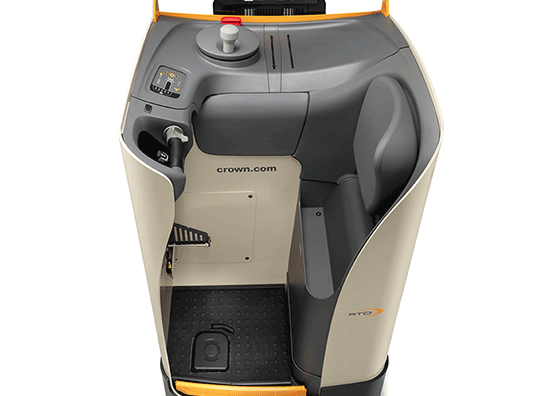

The folding seat combined with the folding footrest provide postural relief for medium to long travel distances.

RTD ride-on double stacker is available with folding seat and footrest

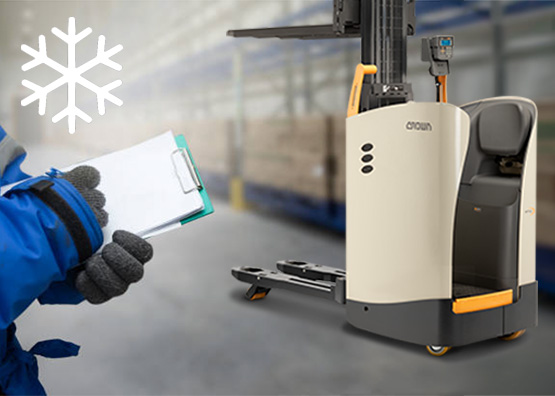

Cold storage conditioning allows the ride-on double stackers to maintain performance in freezer facilities.

RTD ride-on double stacker is available with cold storage conditioning

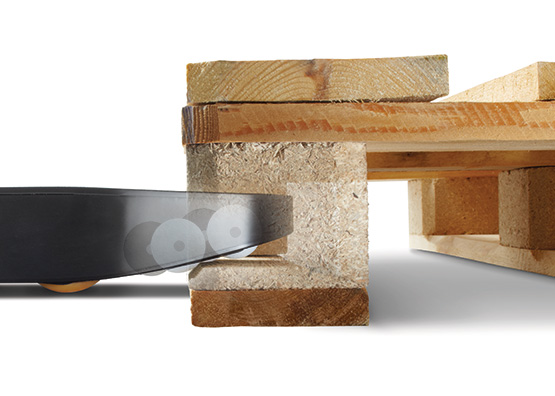

Pallet entry and exit rollers allow the load arms to easily traverse pallet bottom boards, whether the pallet is empty or full.

RTD ride-on double stacker is available with pallet entry / exit rollers

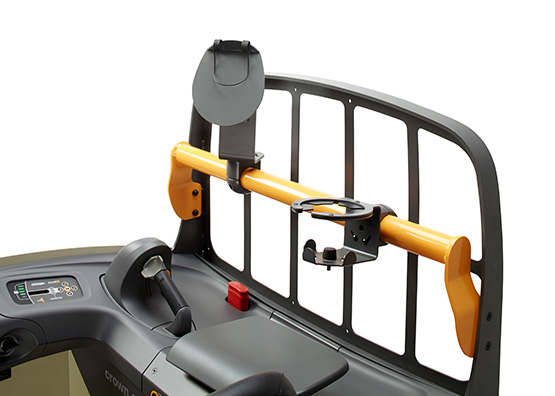

Crown Work Assist accessories are designed to make the operator’s job faster, easier and more productive. The extensive range of accessories includes features such as clip pad, storage pocket, scan gun holder, beverage holder as well as mounting bracket and clamps.

RTD ride-on double stacker is available with work assist accessories
RTD ride-on double stacker is available with LED work lights
