Stand-Up Forklift - RC Series
One Forklift,
Multiple Solutions
When you're looking for one forklift that can handle a wide variety of tasks, whether it's dock work, transport or replenishment and retrieval in the aisle, the RC Series provides a compact, manoeuvrable solution with exceptional ergonomics, comfort and ride control.
Built to Take on More
Application Versatility
The RC stand-up forklift offers the flexibility to easily move from trailer loading and unloading to dock work and from transport to retrieval and replenishment in the aisle.
Ready for Multiple Environments
Equally at home in the heat of the day and the chill of cold storage, the RC forklift is built to handle temperature extremes from shift to shift.
Attachment-Friendly
A full range of attachment options enables the RC Series to handle specialised loads, with pallets and without.
The RC Stand-Up Forklift Provides Confidence with a Commanding View
The side-stance design of the RC Series provides wide open views of the forks and load as well as the direction of travel.
The sculpted power unit curves on the right side, providing a clear view of the forks for increased productivity.
The angled pillar and overhead guard provides for enhanced visibility outside and above the operator compartment.
Rock-Solid Performance
Crown’s proactive Intrinsic Stability System addresses the potential causes of lift truck instability, enabling operators to perform tasks with confidence.
- Hydraulic, travel, cornering and ramp speeds are all monitored and controlled as a system to help avoid unsafe operation.
- A tilt interlock limits tilt at higher lift levels that could result in tip-overs of the stand-up forklift.
- To further boost operator confidence, the RC Series packs a stability-enhancing counterweight into a compact, space-saving design.
A Customisable, Comfortable Fit
Operators who are comfortable and confident accomplish more. That’s why Crown developed innovative features into the RC stand-up forklift with comfort and safety in mind.
FlexRide Suspension System
Adjustable floor suspension adapts to operator weight to provide shock and vibration protection.
Adjustable Armrest
The armrest provides up to 152 mm of adjustment for improved posture and operator comfort.

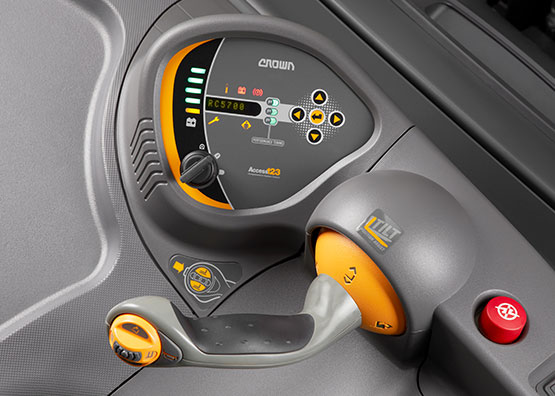

Multi-Task Handle
The comfortable grip handle provides access to all forklift functions and enables operators to blend functions for enhanced productivity.
Dual-Pedal Design
The RC Series promotes safe operation by discouraging operators from using only one foot to operate the stand-up forklift, automatically applying the brake when the operator’s left foot is removed from the brake pedal.
Entry Bar Switch
The Entry Bar switch works in combination with the brake and operator presence pedal, slowing the forklift and sounding an audible alarm when depressed by the operator.
The Power of Uptime
With long-lasting components and a dependable support network, the RC Series provides long-lasting value and a low cost of ownership.
- The e-GEN braking system replaces traditional friction brakes, providing a consistent brake feel for the operator and eliminating brake wear; protected by a comprehensive 2-year warranty.
- Crown-built AC drive motors are specifically engineered for lift truck applications, delivering greater torque and reliability.
- Crown’s Access 1 2 3 Comprehensive System Control integrates real-time information from traction, braking, steering, hydraulics and more for increased performance.
RC Series Model Types
Stand-Up Forklift, 3-Wheel, Electric
The RC Series stand-up forklift features a side-stance operator compartment that maximises visibility and allows for easy entry/exit in applications where the operator is frequently on and off the truck.
Download Specifications Download Brochure
-
Load Capacity
1500 - 1800 kg
-
Max. Lift Height
7010 mm
-
Power
36 V / 775 - 1395 Ah
-
Width Overall
1065 mm
Lodge Manufacturing
Stand-Up Forklift Trucks
Help Boost
Productivity
Options and Accessories
Lithium-Ion Batteries
V-Force lithium-ion batteries can improve performance and productivity. They offer a very short charging time, tolerate unlimited opportunity charging, and simplify battery management by avoiding the need for daily maintenance, spare batteries or special rooms for charging.
Front Worklights
Front worklights provide additional forward visibility for the operator and may help increase forklift awareness for pedestrians.
Attachments
A full range of attachments, including options for a carton clamp, slip sheet push-pull, fork positioner, double fork and side shifter, can handle a variety of loads.
Quad Mast
The quad mast offers a high lift with a lower collapsed height to fit through doorways and beneath other obstructions.
Work Assist Accessories
Crown Work Assist accessories are designed to make the operator's job faster, easier and more productive.
