Ride-On Pallet Truck - RT Series
Run Fast, Run Strong with the RT Series Ride-On Pallet Truck
The RT Series ride-on pallet truck is engineered to make a huge difference in manoeuvrability, responsiveness, reliability and safety. Both the sit-down and stand-up models deliver fast, strong transporting performance with the comfort operators need to run day after day.
Exceptional Manoeuvrability
Dock to Aisle
You can rely on the RT stand-up pallet truck’s agile performance in fast-paced dock work, block stacking and transporting applications.
It simplifies work in congested areas thanks to its exceptional manoeuvrability, narrow chassis (only 780 mm), short head length, responsive steering and intuitive controls. At the same time, the operator platform height enhances visibility.
For increased operator comfort and performance, the stand-up pallet truck provides outstanding ride comfort with a wraparound soft foam lean pad, a choice of right- or left-hand steering and a suspended floorboard (enhanced suspension available as an option).
Fast and Strong Transporting Performance
The sit-down model is designed to excel in long-distance, high-throughput applications. It’s an agile workhorse with advanced ergonomic features for operator comfort and productivity.
The RT Series delivers powerful acceleration and high travel speeds combined with an adjustable full-suspension seat, a height-adjustable floorboard and a higher seating position for better all-round visibility.
The truck's compact operator compartment and excellent manoeuvrability provides additional versatility, helping operators skillfully work around the dock and inside lorries.
Higher Performance, Safely
Crown’s RT Series ride-on pallet trucks offer high-performance features tailored to individual operator and workplace needs.
- Crown AC motors offer 12.5 km/h travel speed and powerful acceleration.
- Operators benefit from electric power steering for exceptional responsiveness and manoeuvrability.
- Cornering speed control safely delivers top driving performance.
- Standard pallet entry and exit rollers allow the load arms to traverse pallet bottom boards, whether the pallet is empty or full.
- The Entry Bar switch deactivates travel if the operator places a foot outside the operator compartment.
Robust. Reliable. Protected.
The RT Series ride-on pallet truck is engineered to withstand the extreme abuse around fast-paced, congested work areas.
- It features a reinforced 8-mm thick steel skirt, 6-mm thick steel wrap-around sidewalls and no exposed plastic parts in external areas.
- Crown designed and built AC motors run longer, cooler and more efficiently and feature the highest thermal rating in the industry.
- Reinforced, one-piece high tensile steel forks feature an adjustable pull-rod linkage, eliminating buckling forces and providing more protection over uneven surfaces and dock boards.
RT Series Model Types

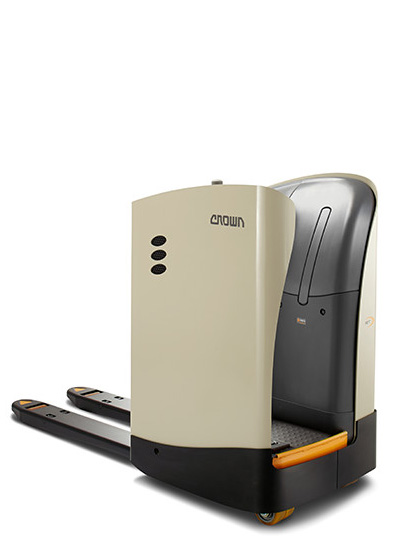

Stand-up Pallet Truck
The RT Series stand-up pallet truck has a load capacity of 2000 kg and travels up to 12.5 km/hour. The narrow chassis and short headlength are perfect for dock work with any size pallet.
Download Specifications Download Brochure
-
Load Capacity
2000 kg
-
Max Lift Height
211 mm
-
Power
24 V / 222 - 465 Ah
-
Head Length
876 mm
-
Width Overall
780 mm
-
Fork Length
1150 - 2400 mm

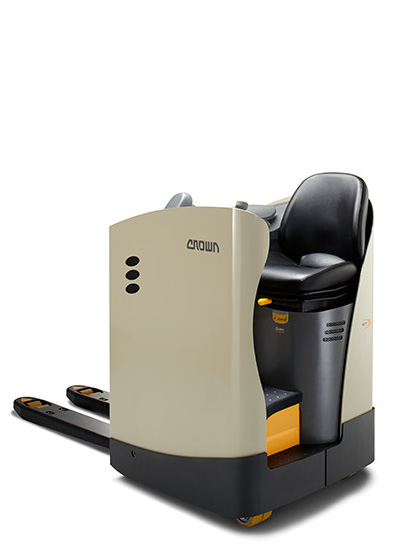

Sit-down Pallet Truck
The RT Series sit-down pallet truck has a load capacity of 2000 kg and travel speed up to 12.5 km/h. Advanced ergonomic and performance features are ideal for long distance transport.
Download Specifications Download Brochure
-
Load Capacity
2000 kg
-
Max Lift Height
211 mm
-
Power
24 V / 296 - 620 Ah
-
Head Length
906 mm
-
Width Overall
950 mm
-
Fork Length
1000 - 2400 mm
Need to go Higher?
Double up throughput with the compact, agile and highly manoeuvrable RTD Series ride-on double stacker.
Options and Accessories
Lithium-Ion Batteries
V-Force lithium-ion batteries can improve performance and productivity. They offer a very short charging time, tolerate unlimited opportunity charging, and simplify battery management by avoiding the need for daily maintenance, spare batteries or special rooms for charging.
On-Board Charger
The fully automatic on-board charger provides a convenient charging solution and eliminates the need to remove the pallet truck battery.
Battery Rollout
Battery rollout allows use with battery extraction/charging equipment to make battery changes in applications that require multiple batteries more convenient.
Load Backrest
The steel-constructed load backrest stabilises loads and prevents pallet movement.
Folding Seat and Footrest (Stand-up Model Only)
The folding seat in combination with the folding footrest provide postural relief for medium to long travel distances.
Seat in Cloth or Vinyl (Sit-Down Model Only)
The pallet truck seat is available in cloth or vinyl to suit conditions or operator preference.
Audible Travel Alarm
The audible travel alarm alerts others to the presence of a moving pallet truck in the area. The alarm can be set to sound when the forklift is travelling forward and/or reverse.
