Order Picker with Mast – MPC Series
With the MPC Order Picker the Exception is Now Standard
You could buy four different forklift trucks for order picking, stacking, replenishment and pallet transport or you could invest in one truck that does it all – the MPC Series order picker with mast.
Application Versatility
The MPC Series owes its versatility to a high-lift mast and counterbalance design. Whether you are working close to machinery, handling 4-way pallets, manoeuvring in congested areas or filling a rack - this order picker with mast can handle it all.
Order Picking
Ergonomic lift heights for any picking task
Pallet Transport
Travel speeds of up to 12.5 km/h and speed control in curves
Pallet Stacking
Flexibility to stack multiple pallets to reduce required floor space
Replenishment
Lift heights of up to 4.3 metres allowing operators to let down pallets as needed
Ergonomic, Smooth, Safe
Crown engineers designed the MPC order picker with outstanding visibility, manoeuvrability and control. A low step height simplifies on/off tasks.
Smooth, responsive acceleration and braking as well as the ergonomic full-suspension platform give operators more confidence for safer operation.
Plus there’s solid-steel protection all around.
Optimise the Order Picking Process
For high-density order picking applications, Crown’s exclusive QuickPick Remote order picking technology automates tasks to simplify your workflow. Operators can advance the truck to the optimal picking position with the simple press of a button.
• Save time
• Reduce risk
• Increase productivity
For customers anticipating future workflow automation needs, the MPC Series can be ordered with a QuickPick Remote-ready option to ensure that the forklift can be retrofitted at a later stage.
The MPC Order Picker is Engineered for Reliable Performance
The MPC order picker with mast features a robust, reliable design that can stand up to intensive use.
We’ve combined the chassis of our award winning low-level order picker with an I-beam mast and rugged ISO Class 2A fork carriage for strength and flexibility.
Strong performance and low energy consumption is achieved through Crown’s exclusive Access 1 2 3 Comprehensive System Control, AC motors, e-GEN braking system and electric steering.
With Crown’s vertically integrated manufacturing and aftermarket services, total cost of ownership can be substantially lower over time.
MPC Series Model Types

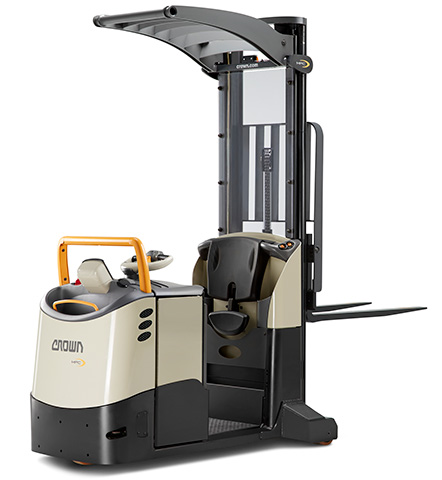

MPC 3000 Order Picker with Mast
The MPC order picker offers greater flexibility with its counterbalance design and high-lift mast.
Download Specifications Download Brochure
-
Load Capacity
1200 kg
-
Max Lift Height
4300 mm
-
Power
24 V / 620 Ah
-
Head Length
1616 - 1691 mm
-
Width Overall
1063 mm
-
Fork Length
1150 mm
Options and Accessories
Lithium-Ion Batteries
V-Force lithium-ion batteries can improve performance and productivity. They offer a very short charging time, tolerate unlimited opportunity charging, and simplify battery management by avoiding the need for daily maintenance, spare batteries or special rooms for charging.
Lift/Lower Buttons in Backrest
Lift and lower buttons in the backrest offer better vantage points for positioning loads – both on and off the order picker.
Fold-Down Step
A fold-down step provides a practical and economical way to extend the reach of the order picker, providing a safer and faster way of handling out-of-reach product.
Fold-Down Lean Seat
The fold-down lean seat provides postural relief for long travel distances to keep operators comfortable and ensure exceptional performance.
Polycarbonate Protection for Overhead Guard
The polycarbonate cover provides additional operator protection without blocking upward visibility.
Rubber Bumper
The rubber bumper provides extra protection to the order picker's apron and chassis in high traffic environments.
Work Assist Accessories & Tubes
Crown Work Assist accessories are designed to make the operator’s job faster, easier and more productive. The extensive range of accessories includes features such as magnetic storage trays, soft writing mats, load trays, clipboards, trash bag holder and beverage holder.
Alongside the tried-and-tested Work Assist accessory tubes, a front version with integrated cable management is available, allowing power-supplied accessories to be mounted on the tube for better accessibility and visibility.
Mirrors
Rear-view mirrors provide greater visibility for the operator without frequent twisting and turning.
