TSP Series

Set A New Pace

The TSP Series very narrow aisle turret truck maximises cube utilisation throughout the warehouse. Exceptional travel speed, capacity and height combine with an industry-leading, heavy-duty mast to deliver optimal performance and long-term reliability.

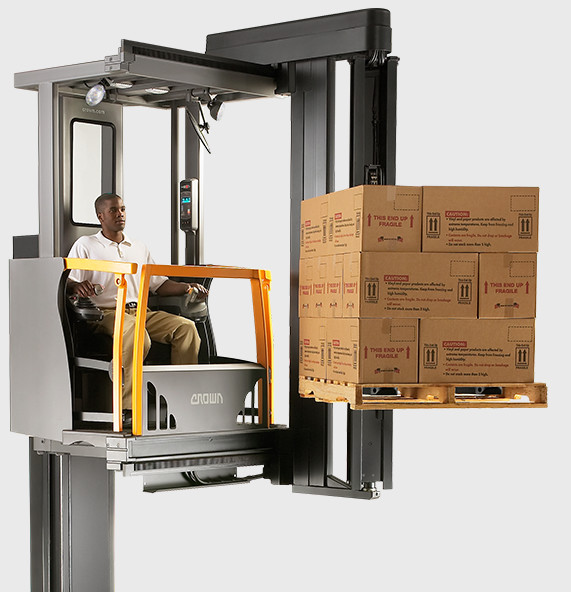

Crown TSP series turret stockpicker

Reach Maximum Capacity

The TSP Series features a stronger mast, higher reach, and narrow footprint, allowing you make the most of your storage space.

Crown’s exclusive MonoLift Mast provides the stability needed for operators and loads up to six stories in the air.

The MonoLift mast includes strengthened boxed-in sections and heavy gauge steel. As a result, there’s less twisting and swaying than with traditional, dual upright masts.

Crown's TSP series turret truck features Crown's exclusive MonoLift Mast which provides extensive stability without compromising visibility
The TSP series features top performance speeds and a regenerative lowering system

Performance to Maximise Every Cycle

With the TSP Series, you can travel, lift and handle loads faster-and run longer-for maximum throughput.

Lifting a loaded platform is where cycle speed is won or lost. With the TSP Series, users achieve up to a 41% advantage in lift speed. Along with faster travel and quicker pivot and traverse speeds, you get total cycle performance.

The regenerative lower system recaptures lost energy while larger batteries provide access to more power, fewer battery changes and longer shift life.

Control to Optimise Every Move

Unmatched comfort, control, and safety enable operators to perform with confidence, all shift long.

Crown’s TSP Series provides unmatched flexibility and comfort with the MoveControl seat. Its integrated controls and full adjustability support every operator move.

Crown’s operator-centric design supports operator control with every move.

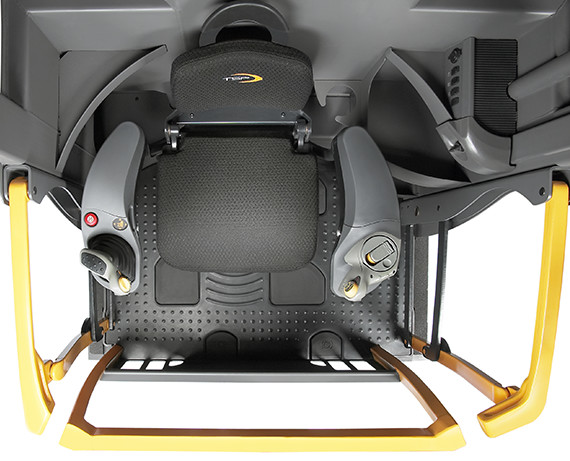

Crown's TSP series turret stockpicker features a MoveControl seat to support operator comfort and manoeuvrability

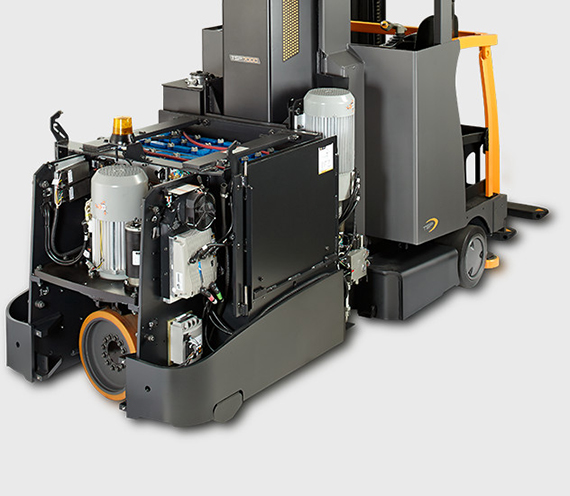

The TSP series turret truck is durable and easily serviceable for minimal maintenance and downtime

Durability Inside and Out

Durability, energy efficiency, and ease of maintenance minimise downtime to keep the TSP Series running strong for maximum productivity.

The Crown TSP Series combines steel-enforced durability, proven technology and ease of serviceability all in one.

TSP Series Model Types

6500 Series
6500 Series

The TSP 6500 Series has a max lift height of 13,485 mm and offers versatility in a VNA truck to handle a wide range of warehousing challenges, including full pallet handling and case picking.

  • Load Capacity

    1,000 - 1,500 kg

  • Power (Electric)

    48 V

  • Max. Lift Height

    13,485 mm

  • Max. Platform Lift Height

    12,140 mm

7000 Series
7000 Series

The TSP 7000 Series VNA truck allows operators to move more product in and out of the warehouse. The MonoLift mast provides excellent visibility and stability all the way to 17145 mm.

  • Load Capacity

    1,000 - 1,500 kg

  • Power (Electric)

    80 V

  • Max. Lift Height

    17,145 mm

  • Max. Platform Lift Height

    15,800 mm

Key Options and Accessories

Wire guidance automates steering control, allowing for minimal aisle widths.

Very narrow-aisle turret forklift wire guidance

Rail guidance automates steering control, allowing for minimal aisle widths. Rail guidance is not affected by facility power outages.

Turret truck rail guidance

Crown’s TT Mast option provides extreme lift heights and low collapsed heights, allowing very tall trucks to easily navigate tunnels and other obstructions such as conveyors and mezzanines.

TSP turret truck triple telescopic mast

The spacious enclosed freezer cabin provides a heated, comfortable work environment in temperature extreme applications. The cabin also affords exceptional visibility that contributes to operator productivity and shift endurance.

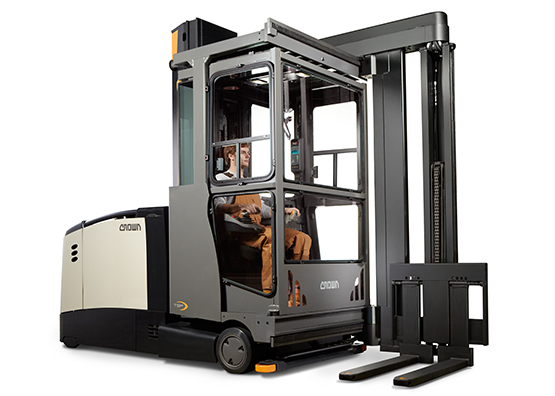

Turret forklift with freezer cabin

The narrow front rail was designed for floor picking applications. With this feature, operators get on and off truck in tight aisles quickly, safely and easily.

TSP series very narrow-aisle turret truck narrow front rail

Crown Work Assist accessories are designed to make the operator's job faster, easier and more productive.

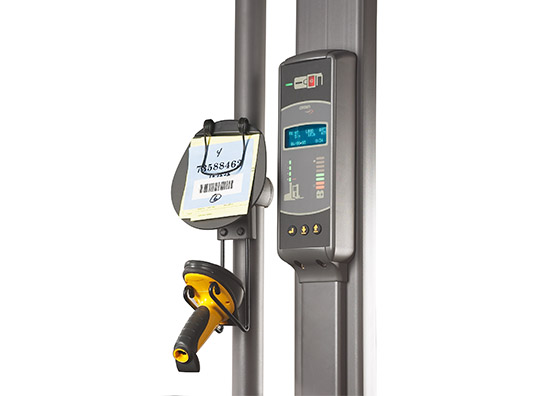

TSP Series turret truck work assist accessories
