WT Series
Built to Perform
When you face intense pallet truck conditions and high throughput demands, Crown has the answer. The WT Series platform pallet truck has what it takes for both truck and operator to excel. Robust engineering. Best-in-class durability. Task efficiency. Comfort.
The WT Series platform pallet truck series offers the widest model variation available including four platform configurations, capacities of up to 2500 kg and electronic steering.
Demanding Job
Built for the extreme, the WT Series platform pallet truck features a cast-steel reinforced chassis, up to 12 mm thick covers, die-cast aluminum handle and the toughest side restraints available.
An advanced suspension significantly reduces shock to the chassis, platform and truck components. The sealed drive unit suspension requires no adjustment for drive tyre wear. Trucks with electric steering include the Active Traction system with innovative hydraulics that adjust the pressure on the traction tyre depending on loading conditions for faster travel speeds and better traction on ramps.
One Smooth Ride
Operators encounter numerous challenges that slow them down: jolts from dock boards, unstable footing, narrow spaces, strenuous steering and heavy loads. The WT Series platform pallet truck addresses these challenges with the FlexRide folding platform suspension which reduces shock transfer to the operator by more than 80%.
Independent testing has confirmed that the ultimate operator suspension is the WT Series’ Weight-Adjustable FlexRide, optional on rear-entry fixed platforms, which fine-tunes the suspension for the operator’s body.
Excellent fork tip visibility, superior tiller positioning and a folding platform all contribute to more comfort and safety.
Lasting Value
Crown builds long-term value into all of its trucks and the WT platform pallet truck is no exception.
Extended service intervals on the Crown WT Series drive more uptime and savings. What’s more, when maintenance or service is required, castor and load wheels are easily replaced and both side panels on the power unit open easily for fast access to internal components.
With Crown’s vertically integrated manufacturing and aftermarket services, total cost of ownership can be substantially lower over time.
WT Series Model Types
WT 3020 Folding Platform
The WT pallet truck with folding platform, ideal for facilities with shorter run lengths, features an economic compact design and exceptional manoeuvrability.
-
Load Capacity
2,000 kg
-
Max Lift Height
210 mm
-
Power
24 V / 240 Ah
-
Head Length
693 - 1,152 mm
-
Width Overall
740 mm
-
Fork Length
1,000 - 1,200 mm
WT 3040 Folding Platform with Side Restraints
The WT pallet truck with folding platform and side restraints is engineered for extreme durability with shock-reducing suspension and superior operator stability.
-
Load Capacity
2,000 - 2,500 kg
-
Max Lift Height
210 mm
-
Power
24 V / 375 - 465 Ah
-
Head Length
769 - 1,228 mm
-
Width Overall
740 mm
-
Fork Length
1,000 - 2,400 mm
WT 3060 Fixed Platform with Side Entry
The WT pallet truck with fixed platform with side entry simplifies load handling and scanning with fast on/off access and shorter walking distance to pallets.
-
Load Capacity
2,000 kg
-
Max Lift Height
210 mm
-
Power
24 V / 375 - 465 Ah
-
Head Length
1,344 mm
-
Width Overall
740 mm
-
Fork Length
1,150 - 2,400 mm
WT 3060 Fixed Platform with Rear Entry
The WT pallet truck with fixed platform with rear entry is ideal for high traffic applications and long run distances.
-
Load Capacity
2,000 - 2,500 kg
-
Max Lift Height
210 mm
-
Power
24 V / 375 - 465 Ah
-
Head Length
1,263 mm
-
Width Overall
740 mm
-
Fork Length
1,150 - 2,400 mm
Key Options and Accessories
Electronic Steering
Electronic power steering improves lift truck control and manoeuvrability while enhancing operator comfort and productivity.
Battery Roll-Out
Battery roll-out allows use with battery extraction/charging equipment to make battery changes in applications that require multiple batteries more convenient.
FlexRide Suspension
Crown's patented weight-adjustable FlexRide suspension system offers shock and vibration protection, providing ultimate comfort for the operator.
Load Backrest
The steel-constructed load backrest stabilises loads and prevents pallet movement.
Load Tray
The 90 kg capacity load tray can be used to hold anything from tools to products.

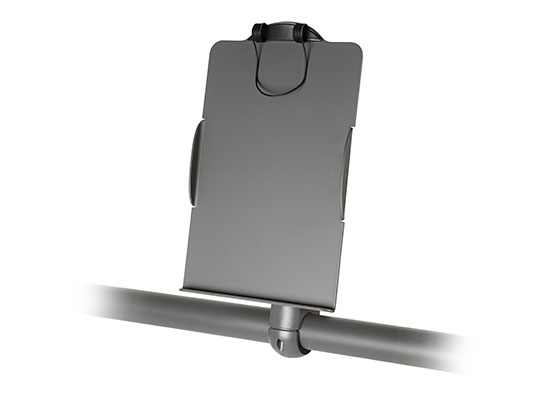

Clip Pads in Different Sizes
Clip pads allow paperwork and shipping labels to be securely stored and readily available for operators.
