When you face intense pallet truck conditions and high throughput demands, Crown has the answer. The WT Series has what it takes for both truck and operator to excel: robust engineering, first class durability, task efficiency and comfort.
The WT Series platform pallet truck offers the widest model variation available including four platform configurations, capacities of up to 2.5 tons and electric power steering.
Built for the extreme, the WT Series platform pallet truck features a cast-steel reinforced chassis, up to 12 mm thick covers, die-cast aluminium handle and the toughest side restraints available.
An advanced suspension significantly reduces shock to the chassis, platform and truck components. The sealed drive unit suspension requires no adjustment for drive tyre wear. Trucks with electric power steering include the Active Traction system with innovative hydraulics that adjust the pressure on the traction tyre depending on loading conditions for faster travel speeds and better traction on ramps.
Operators encounter numerous challenges that slow them down; jolts from dock boards, unstable footing, narrow spaces, strenuous steering and heavy loads. The WT Series platform pallet truck addresses these challenges with the FlexRide folding platform suspension which reduces shock transfer to the operator by more than 80%.
Independent testing has confirmed that weight-adjustable FlexRide – optional on rear-entry fixed platform model – provides exceptional rider comfort by tuning the suspension for the operator’s body weight.
Read the test report.
The Entry Bar switch, standard on fixed platform models, helps to promote operator safety. Excellent fork tip visibility and superior tiller positioning also contribute to more comfort and safety.
With Crown, damage billing for side restraints is a thing of the past.
Crown’s heavy-duty side restraints feature 50 mm diameter heavy-wall steel tubing and a rugged C-clamp mounting system. They can be easily folded up or down for convenient entry and exit.
We’re so confident in the strength and durability of our adjustable side restraints that they're guaranteed for the life of the pallet truck for the original owner.
Strength and durability to survive in the real world.
Guaranteed.

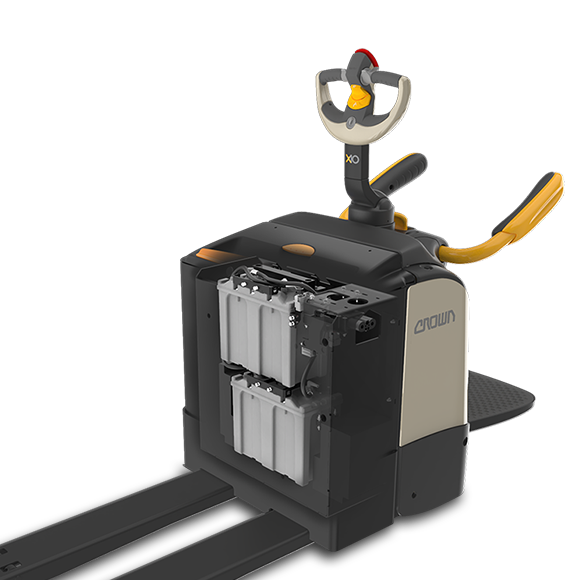

WT Series platform pallet trucks are optionally available with V-Force Lithium-Ion Compact Batteries, fully integrated to provide more efficiency and longer runtimes than traditional lead-acid batteries.
Crown builds long-term value into all of its trucks and the WT platform pallet truck is no exception.
Extended service intervals on the Crown WT Series drive more uptime and savings. What’s more, when maintenance or service is required, castor and load wheels are easily replaced and both side panels on the power unit open easily for fast access to internal components.
With Crown’s vertically integrated manufacturing and aftermarket services, total cost of ownership can be substantially lower over time.
The WT pallet truck with folding platform, ideal for facilities with shorter run lengths, features an economic compact design and exceptional manoeuvrability.
Download Specifications
Download Brochure
Load Capacity
2000 kg
Max Lift Height
210 mm
Power
24 V / 74 - 375 Ah
Head Length
693 - 1152 mm
Width Overall
740 mm
Fork Length
1000 - 1200 mm
The WT pallet truck with folding platform and side restraints is engineered for extreme durability with shock-reducing suspension and superior operator stability.
Download Specifications
Download Brochure
Load Capacity
2000 - 2500 kg
Max Lift Height
210 mm
Power
24 V / 148 - 465 Ah
Head Length
769 - 1228 mm
Width Overall
740 mm
Fork Length
1000 - 2400 mm
The WT pallet truck with fixed platform with side entry simplifies load handling and scanning with fast on/off access and shorter walking distance to pallets.
Download Specifications
Download Brochure
Load Capacity
2000 kg
Max Lift Height
210 mm
Power
24 V / 148 - 465 Ah
Head Length
1344 mm
Width Overall
740 mm
Fork Length
1000 - 2400 mm
The WT pallet truck with fixed platform with rear entry is ideal for high traffic applications and long run distances.
Download Specifications
Download Brochure
Load Capacity
2000 - 2500 kg
Max Lift Height
210 mm
Power
24 V / 148 - 465 Ah
Head Length
1263 mm
Width Overall
740 mm
Fork Length
1000 - 2400 mm
El Ciruelo S.L.
Flexible Rental Programme
Provides up to 5 Times
Larger Fleet in Peak Season
Colorbaby
Key to the Efficient
Operation of the Fleet:
Crown Platform Pallet Trucks
Palibex
Crown Forklifts and
Platform Pallet Trucks
- Reliable Tools for
Maximum Uptime
V-Force lithium-ion batteries can improve performance and productivity. They offer a very short charging time, tolerate unlimited opportunity charging, and simplify battery management by avoiding the need for daily maintenance, spare batteries or special rooms for charging.
Lateral charging simplifies the charging process. The connector of the charger can be plugged conveniently from outside without opening the battery lid.
Battery rollout allows use with battery extraction/charging equipment to make battery changes in applications that require multiple batteries more convenient.
Electric power steering improves control and manoeuvrability of the pallet truck while enhancing operator comfort and productivity.
Crown's weight-adjustable FlexRide suspension system offers shock and vibration protection, providing ultimate comfort for the operator of the pallet truck.
The steel-constructed load backrest helps stabilise loads and prevent pallet movement.
The 90 kg capacity load tray can be used to hold anything from tools to products.
