Reach Trucks - ESR Series

Real Performance is
Within Reach

ESR Series reach trucks with Xpress Lower technology can double lowering speed to improve cycle time and increase productivity while regenerative lowering reduces energy consumption.

Built-in connectivity provided by the Gena operating system provides operators, managers and service engineers with a connected, data-rich environment that's more human, personalised and interactive.

reach truck ESR Series
the reach truck ESR enables operators to work smarter and faster at height

Work Smarter and Faster at Height

On an ESR reach truck, operators work with skill and precision at any height without compromising productivity. The ESR Series features various combinations of advanced hydraulics and motors, programmable features, intuitive displays, one-touch controls and camera options that all work together to raise performance.

  • The ESR reach trucks’ optional Xpress Lower technology can double lowering speeds, resulting in substantial savings in time and money.
  • The optional Auto Height Select feature automatically stops the forks at programmed rack heights - at the push of a button without looking away from the load - to improve throughput and avoid product, rack and lift truck damage.
  • The Tilt Position Assist option compensates for mast and carriage deflection and automatically levels forks relative to the ground for more precise positioning.

Solid Hardware as Standard

To ensure that your reach truck is equipped with the right mast for your application, three mast designs are available for the ESR Series:

heavy duty
super duty
super duty +

All three versions have been designed by Crown to resist flexing which reduces swaying at height and mast vibrations.

They offer impressive residual capacities of up to 1200 kg at 12 m lift height. Other benefits include reduced loading and unloading times, higher throughput, improved operator confidence and added levels of safety.

ESR reach trucks are equipped with the new super duty masts
the reach truck ESR offers outstanding energy efficiency

Efficient Systems, Longer Runtime

The ESR Series reach truck combines high productivity with outstanding energy efficiency.

  • e-GEN braking and regenerative lowering convert kinetic energy into electrical energy to extend runtime.
  • Sensors gather real-time data and adjust operating parameters for efficient performance.
  • Smart energy management separates high-consumption systems from low-consumption systems.
  • V-Force lithium-ion power enables opportunity charging while regenerative lowering also replenishes the battery.
  • Crown's vertical integration strategy focuses development of components specifically for reach truck applications.

Built-in Intelligence

The ESR Series combines enhanced safety with productivity and usability.
Intelligent systems provide contextual guidance to help increase operator awareness and provide a safe and productive working environment. At the same time, the smart technology provides a platform for growth, scalable to meet your future application needs.

Make it Personal

Ergonomics and personalisation play a vital role in improving productivity.
Operators of an ESR reach truck can choose the optimal position for control, visibility and workflow.

ESR Series reach trucks include adjustability for suspension seat height/weight and forward/reverse seat position, as well as seat tilt and lumbar support.

The D4 Armrest can be mounted to the seat or the reach truck. Its height and horizontal position are also adjustable, as are steering tiller height and horizontal position and display screen inclination.

A great fit for both small and large operators.

the ESR reach truck offers unsurpassed adjustability features

The ESR Series reach trucks' offset mast gives the operator a better view of the load wheel, fork and pallet.

The optional panoramic glass further enhances visibility and provides a superior debris shield.

the ESR reach truck offers maximised visibility

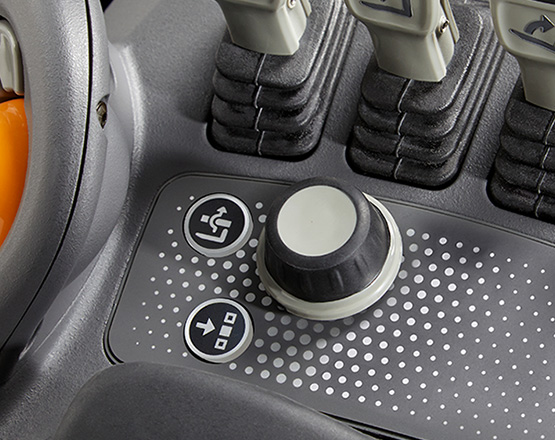

Integrated into the armrest, the ESR reach trucks’ optional display navigation knob provides a convenient alternative to the touchscreen.

Accessories such as worklights and seat heater are controlled from auxiliary switches in the armrest control panel.

the ESR reach truck features an optional navigation knob

The operator-focused D4 Armrest, available as standard on the ESR 1260 and as an option for the ESR 1220 and ESR 1240, helps operators achieve more with adjustability, ergonomic comfort and adaptability.

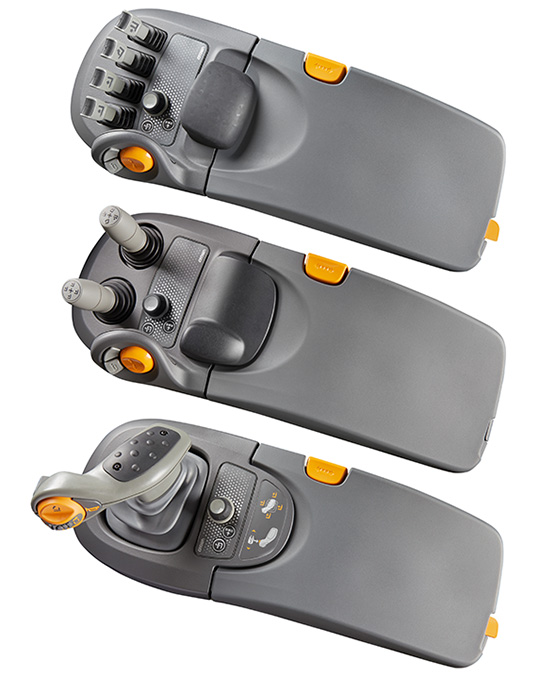

A choice of fingertip, dual lever or multi-task controls allows you to customise your reach truck based on application needs and operator preference.

the ESR reach truck is available with a choice of hydraulic controls
the ESR reach truck offers unsurpassed adjustability features

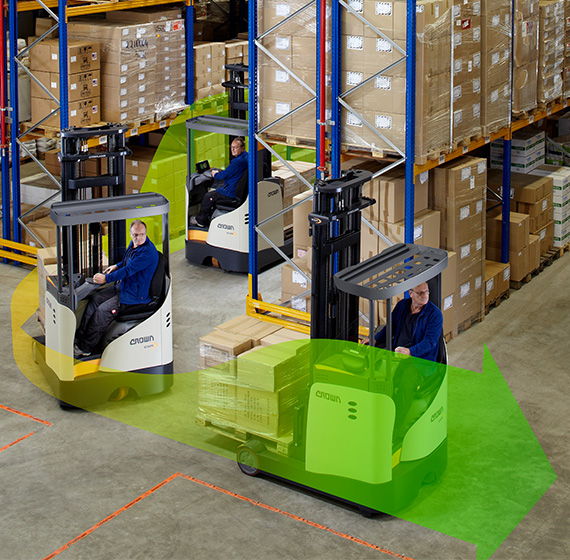

the ESR reach truck delivers safe, efficient performance

Smooth and Predictable Driving Behaviour

The ESR Series reach trucks offer a unique driving experience.

The Gena operating system allows adjustment of driving parameters such as acceleration, braking, or travel speed to specific operator and application requirements, creating an individual driving experience for skilled operators as well as for novices.

Crown's intelligent system for speed reduction in turns recognises whether the operator is driving into or out of a curve, analysing steer tyre angle, driving direction and steering direction, and automatically adjusts speed and acceleration for safety and performance.

Using the reach truck in wet, dusty or freezer applications will greatly benefit from Crown's patented OnTrac anti-slip traction control which reduces tyre spin during acceleration, plugging and braking.

ESR Series Model Types

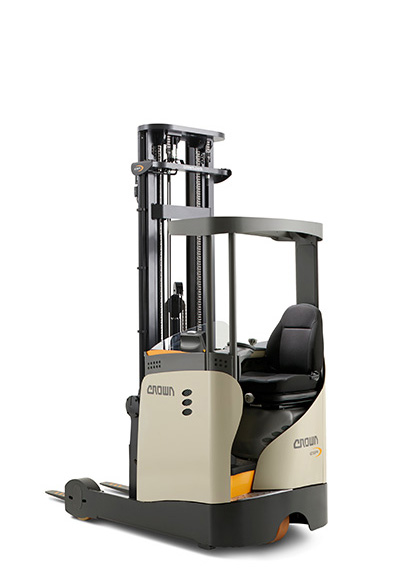

reach truck with narrow chassis ESR 1220
Reach Truck with Narrow Chassis - ESR 1220 Series

This narrow-chassis reach truck features the advanced connectivity, performance and features of the Gena operating system in a size that is ideal for confined spaces, drive-in racks, narrow rack aisles and block stacking applications.

  • Load Capacity

    1400 - 1600 kg

  • Max. Lift Height

    9175 mm

  • Power (lithium-ion)

    48 V / 296 - 518 Ah

  • Power (lead acid)

    48 V / 280 - 775 Ah

  • Head Length

    1166 - 1431 mm

  • Width Overall

    1120 mm

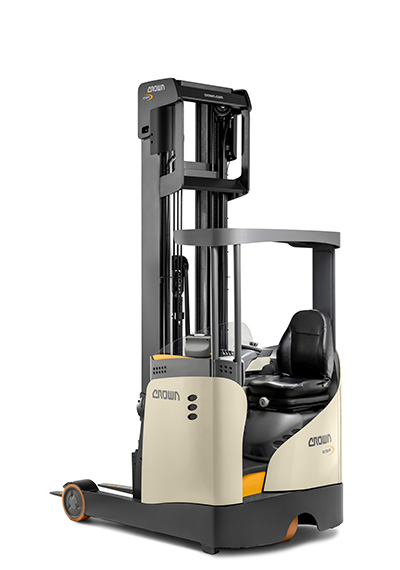

reach truck ESR 1240
Reach Truck with Standard Chassis - ESR 1240 Series

This standard-chassis reach truck provides the breakthrough connectivity and performance of the Gena operating system in a durable, value-packed solution with operator-friendly features, including an optional cold store cabin.

  • Load Capacity

    1400 - 2000 kg

  • Max. Lift Height

    14205 mm

  • Power (lithium-ion)

    48 V / 296 - 666 Ah

  • Power (lead acid)

    48 V / 420 - 930 Ah

  • Head Length

    1186 - 1489 mm

  • Width Overall

    1285 mm

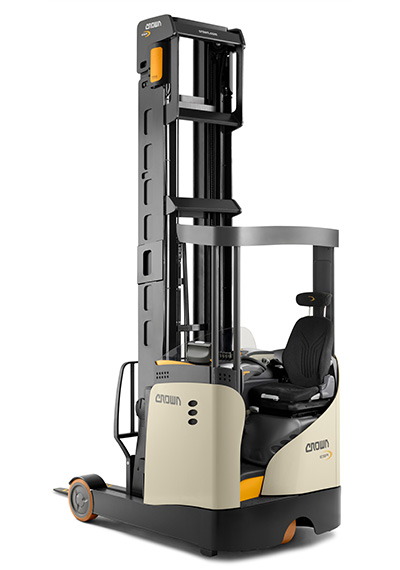

reach truck ESR 1260
Heavy-Duty Reach Truck - ESR 1260 Series

This heavy-duty reach truck offers greater lifting and lowering speeds at height for more productivity in demanding high-bay applications. An optional cold store cabin is available for extreme temperature environments.

  • Load Capacity

    1400 - 2000 kg

  • Max. Lift Height

    14205 mm

  • Power (lithium-ion)

    48 V / 296 - 666 Ah

  • Power (lead acid)

    48 V / 420 - 930 Ah

  • Head Length

    1281 - 1489 mm

  • Width Overall

    1285 mm

Options and Accessories

V-Force lithium-ion batteries can improve performance and productivity. They offer a very short charging time, tolerate unlimited opportunity charging, and simplify battery management by avoiding the need for daily maintenance, spare batteries, or special rooms for charging.

The use of a lithium-ion battery in combination with regenerative lowering enables energy savings of up to 30%.

ESR reach trucks can be equipped with lithium-ion batteries

Floor spotlights - available in blue or red colour or as floor linelights - can alert pedestrians of a forklift's presence.

the ESR reach truck is available with floor spotlights

ESR reach trucks with the Gena operating system can be equipped with a USB charging port, suitable for charging phones, tablets and other mobile devices.

for the ESR 1000 reach truck, a USB charging port is available

The camera (mast or fork mounted) and colour monitor improve the operator's visibility at height.

ESR reach truck with colour camera system

The spacious enclosed freezer cabin provides a heated, comfortable work environment in temperature extreme applications (-30°C). The cabin also affords exceptional visibility that contributes to operator productivity and shift endurance. (available on ESR 1240 and ESR 1260 models)

the ESR reach truck is available with Cold Store Cabin

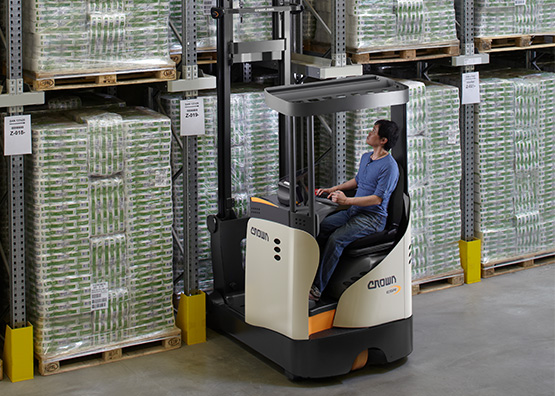

A choice of overhead guards allows you to personalise your reach truck to meet your application needs: angled, flat, extended, drive-in rack, low clearance or clear glass.

for the ESR reach trucks a choice of overhead guards is available
ESR reach trucks can be equipped with lithium-ion batteries
