Straddle Stackers - ST/SX Series

Optimised Space and Efficiency with Crown Straddle Stackers

Crown ST/SX Series straddle stackers offer a safe, productive and cost effective solution when you need to maximise your storage space and improve efficiency.

straddle stackers ST/SX Series

Exceptional Utility

Experience more efficiency and utility all-around with the ST/SX Series straddle stackers. Stacking capabilities save space and time, order picking becomes more manageable and efficient. Use it as a portable work station, load and unload trucks from the ground and simplify maintenance tasks.

When compared with counterbalance forklifts, Crown straddle stackers allow you to stack more products in the same size room, which translates into more usable space while optimising selectivity.

ST/SX straddle stackers offer superior efficiency and utility
ST/SX straddle stackers offer exceptional visibility

ST/SX Straddle Stackers Offer a Clear View All Around

Operators using the ST/SX Series straddle stackers benefit from exceptional visibility, allowing them to quickly and confidently manoeuvre in tight spaces and position loads on the floor or while elevated.

The low-profile power unit and clear mast design provide excellent fork-tip visibility on the ground and while working with elevated loads.

Take Control

You need exceptional control to meet the challenges of efficiently moving and storing product in limited space. The innovative controls and compact design of the ST/SX straddle stackers enable operators to manoeuvre with ease.

The exclusive Crown X10 Handle with its uniquely designed handgrip, thumbwheel and raise/lower buttons, simplifies operation and enhances comfort. The brake-override feature enables the straddle stackers to turn in an area almost as small as their own footprint while the handle remains within the geometry of the trucks.

Operators can quickly and conveniently choose from two levels of programmable performance to match their own skill level or the particular application needs.

ST/SX straddle stackers manoeuvre with ease
ST/SX straddle stackers are engineered for durability and long-term performance

Reliable, Lasting Value

Crown builds long-term value into all of its forklift trucks and the ST/SX Series straddle stackers are no exception.

Durability is evident inside and out. The frame, mast and outriggers feature generous amounts of steel for long life and a steel power unit cover to protect internal components. The control handle is made of high-grade aluminum and benefits from structural webbing for maximum strength and durability.

Long-term performance advantages are further extended with Crown’s integrated approach to maintenance.  Internal components can be accessed quickly and easily.  In addition, Crown’s innovative InfoPoint system simplifies trouble-shooting for service technicians.



ST/SX Series Model Types

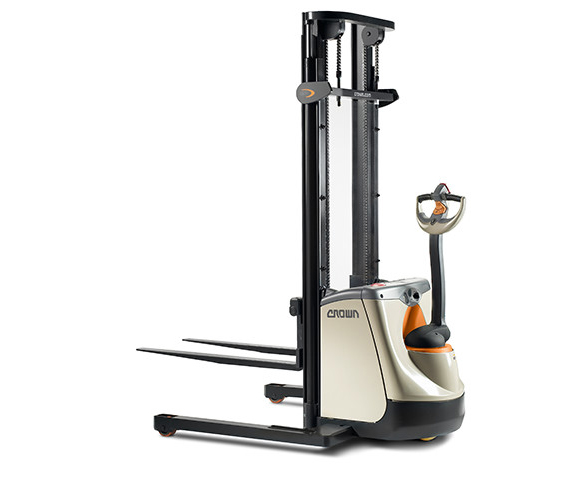

straddle stackers ST 3000
Straddle Stackers ST Series, Standard & Narrow

The ST Series straddle stacker is made to lift up to 1000 kg in tight applications. It can stack loads 3-4 high in a rack structure to maximise cube utilisation.

  • Load Capacity

    1000 kg

  • Max Lift Height

    4250 mm

  • Power

    24 V / 94 Ah

  • Head Length

    825 - 843 mm

  • Inside Straddle

    865 - 1270 mm

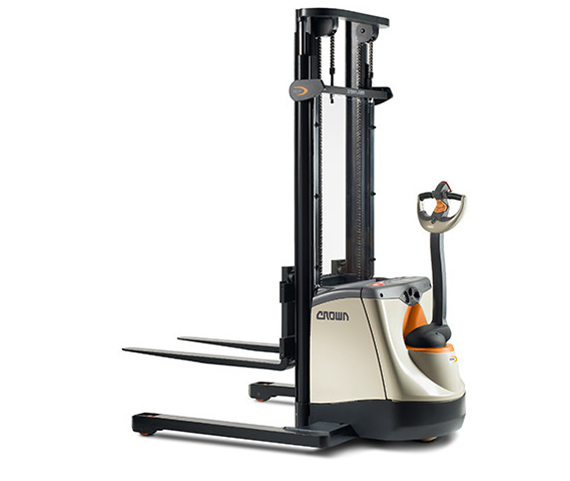

straddle stackers SX 3000
Straddle Stackers SX Series, Standard & Narrow

The SX Series straddle stacker has a maximum capacity of 1350 kg. With a tight turning radius, it can move and stack in even the tightest work areas.

  • Load Capacity

    1350 kg

  • Max Lift Height

    4250 mm

  • Power

    24 V / 192 Ah

  • Head Length

    867 - 887 mm

  • Inside Straddle

    865 - 1270 mm

Options and Accessories

The sideshifter (SX stackers only) allows operators to easily reposition loads.

SX straddle stackers with sideshifter

Freezer conditioning allows the straddle stackers to maintain performance in cold storage facilities.

for ST/SX straddle stackers are available with freezer conditioning

The steel-constructed load backrest stabilises loads and prevents pallet movement.

ST/SX straddle stackers with load backrest
SX straddle stackers with sideshifter
