V-Force V-HFE Forklift Battery Chargers

Maximize Your Efficiency and Your Charger Investment

Crown V-HFE Series Chargers provide energy efficiency, maximum battery life and high reliability at an economical price.

v-force v-hfe charger

Efficiency with Ease

Achieve energy efficiency with easy installation, simple configuration and minimal investment.

38%

Power Savings

The V-HFE charger offers more efficiency over the entire charging cycle. Save thousands of dollars over the life of the battery when compared with traditional Ferro and SCR chargers.

93%

Charge Efficiency

With the ability to achieve 93 percent efficiency over an entire charge cycle, reduced amp draw rates result in lower charging costs.

Easy Configuration

V-HFE Series Chargers provide nine models in voltage ratings of 24, 36 and 48 volts with two charge profiles and flexible configuration from the charger’s front panel.

Chargers on wall

Maximize Battery Life

IEI (constant current – constant voltage – constant current) charge profile reduces the amount of heat generated during the entire charge cycle, minimizing battery-damaging heat. By monitoring the battery’s change in voltage over time, the charger prevents the battery from over and under charging, maximizing your battery and charger efficiency.

Simple, Front Panel Configuration

There’s no cable, software or complex internal switch configurations to consider. All programming is completed using the front-mounted display screen and keypad. Select either the conventional or cold storage profile, then customize your configuration:


• Battery Capacity

• Cable Length

• Equalization Cycle/Immediate

• Start Delay

• Cool Down Period

• Charge Profile

configuring charger via front panel and keypad
graphic comparing size and bulk of V-HFE charger versus traditional chargers

Easy to Move, Easy to Install

The V-HFE Charger is a fraction of the size and weight of traditional chargers, making it easier to install them in tight warehouse quarters. Its smaller footprint occupies approximately 67% less space so your charger space can also be used more efficiently. A universal mounting bracket is included that enables you to mount the charger on a wall, shelf or rack. Its light weight makes it easy to move and easy to store.

Available V-HFE Chargers

24 V
24 V

Single or three-phase chargers in an FS3 cabinet with conventional amp hour ranges between 300 and 1050 AH and AC input of 208/240 or 480 volts.

36 V
36 V

Single or three-phase chargers in an FS3 cabinet with conventional amp hour ranges between 300 and 1200 AH and AC input of 208/240 or 480 volts.

48 V
48 V

A three-phase charger in an FS3 cabinet with conventional amp hour range of 300-1050 AH and AC input of 480 volts.

Key Options and Accessories

(1) The Mounting Bracket offers the ideal mounting solution for FS3 size charger cabinets, supporting up to 50 lbs while allowing the charger to be mounted from the rear, side or bottom of charger.

(2) The L-Bracket is used in conjunction with pogo sticks to secure cables off the floor and within easy reach.

Mounting Bracket, L-Bracket

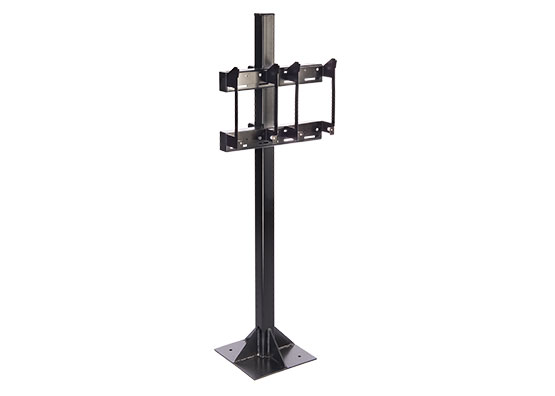

Versatile design provides multiple configuration options by anchoring to the floor to hold chargers and battery cables safely in place.

Enables placement of multiple chargers at optimal working height for easy access while freeing up warehouse floor space.

Includes all mounting hardware and pogo sticks for securing cables.

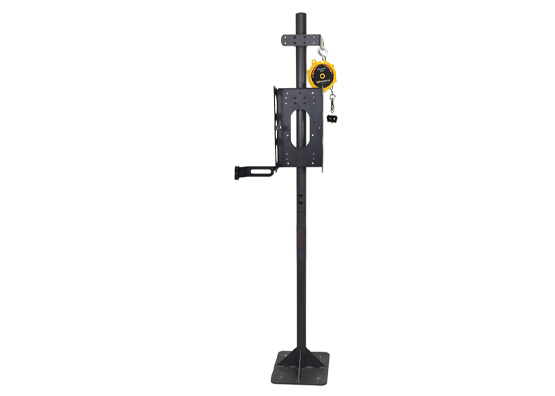

V-Force battery charger stand

Pogo sticks are used in conjunction with charging stands to securely store battery cables away from the floor.

Provides operators with easy access at an optimal work height while preventing wear and tear on cables and connectors.

Pogo sticks help keep battery cables off the floor
